Insize ISF-MT1K Test Stand For ISF Force Gauges

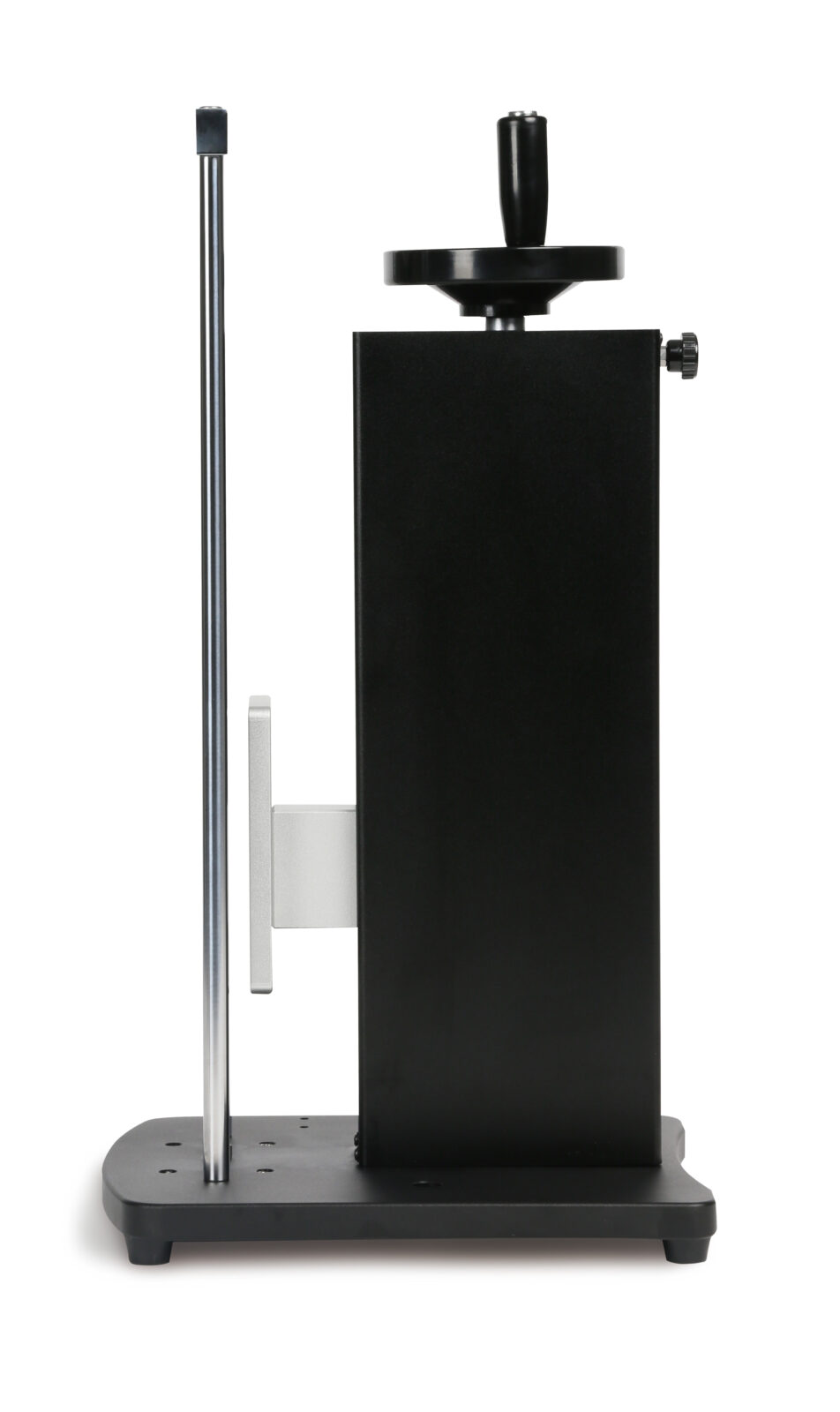

In-size Forge Gauge testing rig product image with white background.

ISF-MT1K Î¯Íı

Insize ISF-MT1K Test Stand For ISF Force Gauges

Our Price: £652.00 + VAT (£782.40 inc VAT)

Description

Manual Test Stand for Digital Force Gauges

Precision Force Testing Stand | 1000N Capacity | Vertical and Horizontal Operation

The ISF-MT1K Test Stand is a high-precision, manually operated fixture designed to transform your digital force gauge into a versatile, benchtop testing machine. Engineered for repeatable and controlled tension and compression testing, this stand is essential for laboratories, quality control departments, and R&D facilities.

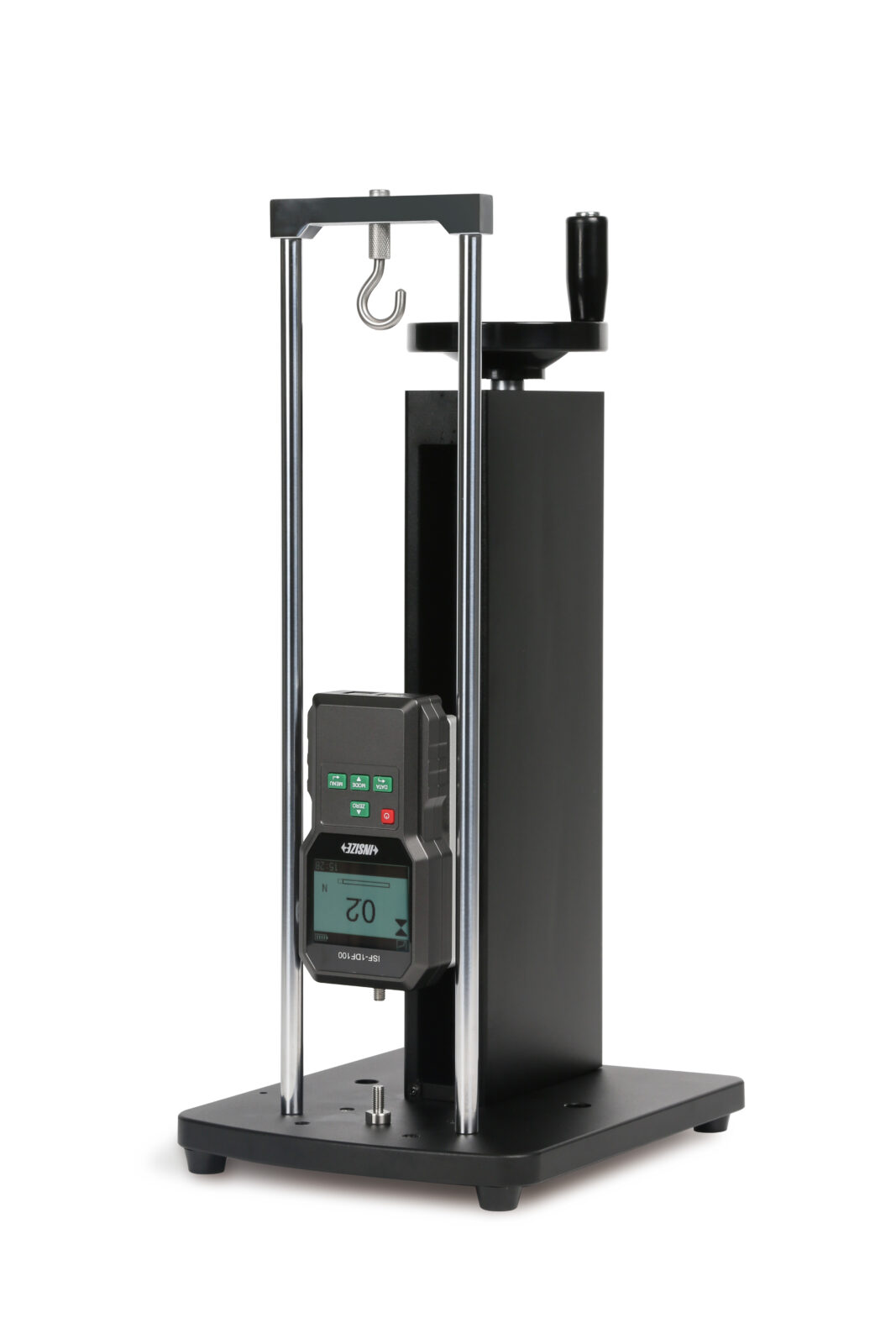

It is specifically designed for use with ISF-1DF and ISF-DF digital force gauges (sold separately). A key feature is its versatility, allowing it to be used in both vertical and horizontal orientations to accommodate a wide range of test setups. With a robust 1000N (Newtons) load capacity and finely controlled travel via a precision handwheel, the ISF-MT1K ensures consistent and accurate force application for material testing, product compliance, and component evaluation.

Key Performance Specifications

Specification	Detail
Model Code	ISF-MT1K
Load Capacity	1000N
Travel	200mm
Movement per Handwheel Revolution	3mm vertical movement
Orientation	Vertical and Horizontal operation
Weight	13kg
Dimensions (L×W×H)	196mm x 250mm x 446mm
Compatibility	Digital Force Gauges (ISF-1DF and ISF-DF series)

Operational Features & Accessories

Precision Control: Fine vertical movement of 3mm per revolution of the handwheel allows for highly controlled force application.
Adaptable Design: The stand can be easily switched to a horizontal orientation for pull/push tests that require an extended bench area.
Durable Construction: A sturdy 13kg weight ensures stability and minimizes movement during testing.
Force Gauge Flexibility: The test stand provides the required mechanical movement; the force gauge is optional and purchased separately.

Optional Accessories for Enhanced Measurement

Digital Scale (Code ISF-MT1K-SCALE): Integrates directly with the stand to provide precise measurement of the displacement (travel) during testing.
- Range: 200mm
- Resolution: 0.01mm/0.0005”

Download Datasheet

View In-Size ISF Force Gauge Stand Datasheet

Reviews

There are no reviews yet.

Be the first to review “Insize ISF-MT1K Test Stand For ISF Force Gauges”

Frequently Asked Questions

Please see below for answers to frequently asked questions.

Are readability and accuracy the same thing?

No, although they are both useful measures of weighing equipment performance. Readability refers to the smallest increment of weight that scales or balances will display. A readability of 0.5g, for example, means the scale would display an item of 10.503g’s weight as 10.5g and an item of 10.805g as 11.0g.

Accuracy is a measure of the possible difference between the displayed weight and an item’s real weight. It is often displayed as a percentage. An accuracy of +/- 1% means the scale could measure 100g as anywhere between 99g and 101g.

Do I need a calibration certificate?

A calibration certificate proves the accuracy of your weighing equipment. It is very likely that if accuracy matters in your workplace, certification will be required by your industry regulators. They are straightforward to get hold of though. Just ask our team.

Do I need a "Verified For Trade Use" scale?

If you are trading or transacting anything by weight, you will probably need to demonstrate your weighing equipment is verified for trade use. This gives your customers confidence in your business and will make sure buying and selling run smoothly. We can help get you with relevant approvals for your equipment.

How often should I have my scales calibrated?

The answer will vary depending on how your equipment is used. As a minimum, we typically recommend once a year but our team can provide advice based on your individual circumstances.

Which class of test weight should I use?

The International Organization of Legal Metrology (OIML) has established standards for the classification of calibration test weights. Varying from E0 & E1, which are the most accurate to M2 which are commonly used for calibrating platform scales, floor scales and other industrial weighing instruments.

As a rough guide we have listed desired accuracy against class below.

+/- 0.1% – UNclassed Proof Load Test Weights
+/- 0.05% – M3 (Check/calibrate coarse scales)
+/- 0.005% – M1 (Check/calibrate standard scales)
+/- 0.0015% – F2 (Check/calibrate portable balances)
+/- 0.0005% – F1 (Check/calibrate precision balances)
+/- 0.00015% – E2 (Check/calibrate analytical balances)

The choice of weight class depends on the intended use and the level of accuracy required for a particular application. If you’re unsure, talk to our team who can advise you on the right class for your equipment.

How to pack a scale for shipping

If you’re sending a scale back to us for recalibration, it is ideal to use the original packaging. If this is not available choose a sturdy well-padded box to avoid shocks. Where possible, protect the load sensor by removing the weighing pan and any under-pan support and pack these separately in the box. You may be able to use the equipment’s locking pins or screws too.

Do ensure all the paperwork, including your contact details, is included to ensure we can return it once calibration is complete.
