Ravas 2100 EXi 2/22 ATEX Pallet Truck Scale Main Product Image on white background

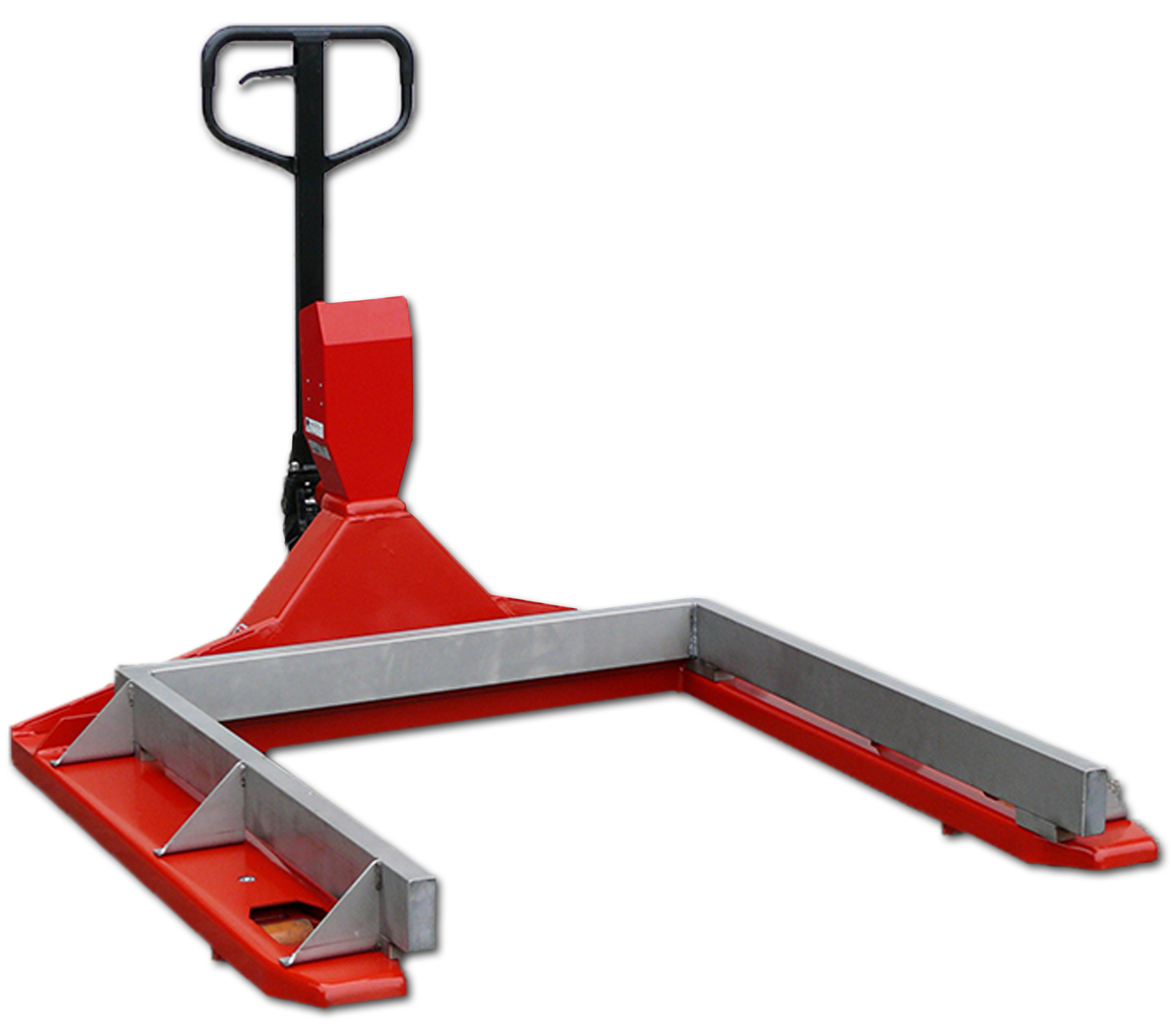

Ravas 2100 EXi 2/22 ATEX Pallet Truck Scale optional extra large fork width.
Ravas 2100 EXi 2/22 ATEX Pallet Truck Scale closeup of indicator

Ravas 2100 EXi ATEX 2/22 Pallet Truck Scale

Our Price: £4,095.00 + VAT (£4,914.00 inc VAT)

Gemini said

Understood—you are referring to the specific Ravas 2100 EXi version certified for ATEX Zone 2/22.

While the 1/21 version is built for high-risk zones where an explosive atmosphere is likely, the 2/22 version is a distinct product tailored for areas where such risks are rare or short-lived. This allows for a slightly different hardware configuration, often featuring a different battery setup and potentially a lighter own weight, while still providing the essential antistatic and spark-free safety features required for legal compliance in those zones.

Here is the drafted content for the Ravas 2100 EXi (Zone 2/22), optimized for the UK market.

Ravas 2100 EXi Explosion-Proof Pallet Truck Scale (ATEX Zone 2/22)

The Ravas 2100 EXi 2/22 is a specialized, safety-certified weighing pallet truck designed for environments classified as ATEX Zone 2 (Gas) and Zone 22 (Dust). It provides the perfect balance of mobile weighing efficiency and safety compliance for facilities where explosive atmospheres are unlikely to occur in normal operation, but where certified protection is still a legal requirement.

Commonly used in flour mills, cosmetics manufacturing, and chemical storage areas, the 2100 EXi 2/22 eliminates the need to transport materials to a fixed scale, allowing for safe check-weighing, batching, and shipping verification directly at the point of use.

Certified Safety for Occasional Risk Zones

The 2100 EXi 2/22 is engineered to provide reliable protection without the over-specification (and cost) of higher-zone models.

  • ATEX Zone 2/22 Certification: Fully compliant with safety standards for areas where explosive gas or dust risks are intermittent or short-lived.

  • Antistatic Engineering: Features antistatic steering wheels (< 10^9 Ohm) as standard to prevent static discharge, an essential safety feature for powder and chemical environments.

  • Rugged Industrial Build: Equipped with a chemical-resistant polymer indicator (IP65) and IP67-rated load cells, ensuring the scale remains accurate in damp or dusty conditions.

  • Intrinsically Safe Power: Utilizes a specialized, exchangeable battery module designed for safe operation within certified zones, providing up to 35 to 100 hours of use depending on the specific battery configuration.

  • Ergonomic Quick-Lift Pump: Designed for high-volume use, the quick-lift pump reduces the physical effort required to move loads up to 2,200kg, improving operator safety and speed.

High-Precision Weighing Performance

  • Multirange Graduation: The system automatically provides higher resolution at lower weights: 0.2kg increments up to 200kg, 0.5kg up to 500kg, and 1kg up to the full capacity.

  • Essential Logistics Functions: Includes gross/net weighing, automatic and manual zero correction, and a totalling memory with sequence numbering for tracking multiple pallets.

  • User-Friendly Interface: A high-contrast, 18mm LCD display paired with large function keys allows for easy operation, even when wearing heavy-duty industrial gloves.

Technical Specifications

The Ravas 2100 EXi 2/22 is a dedicated safety instrument for Zone 2 and 22 environments.

Feature Details
Capacity 2,200 kg
Graduation (Multirange) 0.2 kg (<200kg) / 0.5 kg (<500kg) / 1.0 kg (<2,200kg)
ATEX Certification Zone 2 (Gas) / Zone 22 (Dust)
Max. Inaccuracy 0.1% of the load lifted
Protection Class Load Cells IP67 / Indicator IP65
Steering Wheels Rubber, Antistatic
Chassis Finish Epoxy painted, RAL 3000 (Red)
Own Weight Approx. 99–120 kg (Chassis dependent)

Ready to Order?

The Ravas 2100 EXi 2/22 is available for purchase through our secure checkout for standard configurations.

Need Specialized Upgrades or Advice? ATEX requirements can be complex. If you need a Legal for Trade (OIML III) version, stainless steel fork shoes, or a built-in thermal printer, please contact our hazardous area specialists to ensure your configuration meets your site safety audit.

  • Phone: 01842 751633

  • Email: sales@blakeandboughton.co.uk

Why Buy From Scales and Balances?

Invest in compliant safety with the confidence of a specialist UK partner:

  • ATEX Compliance Experts: We understand the nuances between Zone 1/21 and 2/22, ensuring you receive the correct level of protection for your specific environment.

  • Authorised Ravas Specialist: We supply genuine Ravas hardware, providing you with full technical documentation for your Health & Safety records.

  • Direct UK E-Commerce: We are the first to offer Ravas explosion-proof equipment with transparent, direct-to-basket pricing for the UK market.

  • Comprehensive Support: From initial setup to annual calibration in hazardous zones, our team provides the ongoing technical support your operation requires.

Do you require a Calibration Certificate? (Ravas Pallet Truck Scales)

Price: £150

gmailicon

Description

The Ravas 2100 Zone 2 & 22 is a high-performance, intrinsically safe weighing solution specifically certified for hazardous areas classified as Zone 2 (Gas) and Zone 22 (Dust). This model is the professional standard for mixing, batching, and weighing in environments where explosive atmospheres may occur occasionally, such as in flour mills, chemical storage, or pharmaceutical production.

Built with stainless steel forks as standard, the 2100 Zone 2 & 22 combines robust industrial durability with specialized safety engineering to ensure total compliance with ATEX regulations.

Certified Safety for Zone 2/22 Environments

This scale is engineered to provide precise weighing without compromising the safety of your facility.

  • ATEX System Certification: Fully certified for Zone 2 (II 3G Ex ic IIB T6 Gc IIB) and Zone 22 (II 3 D Ex ic IIIC T85°C Dc).
  • Intrinsically Safe Electronics: Features an intrinsically safe indicator board and a chemical-resistant foil keypad.
  • Antistatic Protection: Equipped with antistatic rubber steering wheels to prevent the build-up of static electricity, a critical requirement for safety in hazardous zones.
  • Rugged Protection: The system features IP67-rated load cells and an IP65-rated indicator, ensuring reliability in dusty or damp industrial settings.
  • High-Capacity Power: Driven by an intrinsically safe, rechargeable 12Vdc battery pack providing up to 100 hours of continuous use.

Advanced Weighing & Functionality

  • Multirange Precision: The scale automatically adjusts its resolution for maximum accuracy: 2kg increments up to 200kg, 0.5kg up to 500kg, and 1kg up to the full 2,000kg capacity.
  • Operational Efficiency: Features a quick-lift pump and an automatic switch-off after 30 minutes of non-use to preserve battery life.
  • Clear Data Interface: An 18mm high-contrast LCD display provides clear visibility for operators, even in low-light warehouse conditions.
  • Core Logistics Functions: Includes automatic and manual zero correction, gross/net weighing, and automatic tare over the full scale.



Technical Specifications

The Ravas 2100 Zone 2 & 22 is a dedicated safety instrument for compliant weighing in hazardous areas.

Feature Details
Capacity 2,000 kg
Graduation (Multirange) 0.2 kg / 0.5 kg / 1.0 kg
ATEX Certification Zone 2 (Gas) & Zone 22 (Dust)
Forks Stainless Steel
Battery Life 100 Hours (Rechargeable)
Charging Time Approximately 8 hours
Own Weight 145 kg
Standard Fork Dimensions 1150mm x 555mm

Ready to Order?

The Ravas 2100 Zone 2 & 22 is available for purchase through our secure checkout for standard configurations.

Need Specialized Upgrades?

If your application requires a Legal for Trade (OIML III) version, a rotating indicator for easier reading during mixing, or a footbrake, please contact our technical team.

  • Phone: 01842 751633

  • Email: sales@blakeandboughton.co.uk

View Datasheets and Downloads

Ravas 2100 EXi 2-22 Pallet Truck Scale Datasheet

Reviews

There are no reviews yet.

Be the first to review “Ravas 2100 EXi ATEX 2/22 Pallet Truck Scale”

Your email address will not be published. Required fields are marked *

1 2 3 4 5

Similar products

Frequently Asked Questions

Please see below for answers to frequently asked questions.

A calibration certificate proves the accuracy of your weighing equipment. It is very likely that if accuracy matters in your workplace, certification will be required by your industry regulators. They are straightforward to get hold of though. Just ask our team.

If you are trading or transacting anything by weight, you will probably need to demonstrate your weighing equipment is verified for trade use. This gives your customers confidence in your business and will make sure buying and selling run smoothly. We can help get you with relevant approvals for your equipment.

The answer will vary depending on how your equipment is used. As a minimum, we typically recommend once a year but our team can provide advice based on your individual circumstances.

The International Organization of Legal Metrology (OIML) has established standards for the classification of calibration test weights. Varying from E0 & E1, which are the most accurate to M2 which are commonly used for calibrating platform scales, floor scales and other industrial weighing instruments.

As a rough guide we have listed desired accuracy against class below.

+/- 0.1% – UNclassed Proof Load Test Weights
+/- 0.05% – M3 (Check/calibrate coarse scales)
+/- 0.005% – M1 (Check/calibrate standard scales)
+/- 0.0015% – F2 (Check/calibrate portable balances)
+/- 0.0005% – F1 (Check/calibrate precision balances)
+/- 0.00015% – E2 (Check/calibrate analytical balances)

The choice of weight class depends on the intended use and the level of accuracy required for a particular application. If you’re unsure, talk to our team who can advise you on the right class for your equipment.

If you’re sending a scale back to us for recalibration, it is ideal to use the original packaging. If this is not available choose a sturdy well-padded box to avoid shocks. Where possible, protect the load sensor by removing the weighing pan and any under-pan support and pack these separately in the box. You may be able to use the equipment’s locking pins or screws too.

Do ensure all the paperwork, including your contact details, is included to ensure we can return it once calibration is complete.
