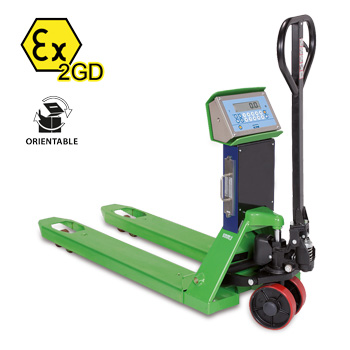

Dini Argeo TPWX Pallet Truck Scales with white background
M

TPWX ATEX Pallet Truck Scales (Zones 1, 21) – Trade Approved

Our Price: £2,783.00 + VAT (£3,339.60 inc VAT)

Robust, Functional And High Performing Pallet Trucks

Do you require a calibration certificate – traceable to National Standards?

Price: £75

gmailicon

Description

Robust, Functional And High Performing Pallet Truck Scales

Dini Argeo Pallet truck scales, with built-in electronic weighing, for dangerous areas classified as hazardous (zones 1 and 21 & 2 and 22) in accordance with Ex II 2G IIB T4 Gb X and Ex II 2D IIIC T197°C Db X
The Atex certified four load cell weight detection IP68 guarantees the best accuracy in all work conditions

Main Features:

Maximum lifting capacity: 2500 kg
Accuracy: +/- 0.05% of the maximum capacity
Fork dimensions 1150 x 550 x 85 mm
Weighs about 125 kg
Bearing structure in extra thick sheet steel and oven-fire painted interior construction
Standard fitted with +/-160° swivelling column head
Steering wheels and double loading rollers with a polyurethane coating
Atex certified, 4 stainless steel IP68 shear-beam load cells
Indicator with easy to clean satin finish stainless steel case with IP68 enclosure built to withstand humid and dusty environments; large LCD display 25-mm high contrast digits which are clearly visible even in poor lighting conditions; 17-key numerical/functional membrane waterproof keyboard
Calibration and Set-Up parameters configurable from keyboard
Powered by a 150-hour extractable battery, rechargeable in safe zone
Equipped with 230Vac 50 Hz battery charger to be recharged in a safe area

WARNING:
With ATEX weighing systems, when directly weighing light metals (such as aluminium, magnesium, titanium and their alloys), it is necessary to use the STAINLESS STEEL loading forks. Please contacts us if this is your application, or for the fully stainless steel model see TPWI.

Applications: High Resolution Weighing x 10, Net/Gross or lb/kg Conversion, Weighs Accumulation, Formula Weighing, Hold, Piece Counting

Weighing Units: kg, lb

Power Supply: Power supply 230Vac 50 Hz battery charger to be recharged in a safe area

Downloads

PDF-Download

We endeavour to deliver your goods to you as fast as we can. A large percentage of our orders are delivered in 3 - 5 working days (all mainland UK postcodes except IV, AB and KW) but some goods can take longer if they are delivered direct from the manufacturer or if the item is made to order. Please note, IV, AB and KW postcodes and non-mainland UK including Northern Ireland can take longer. Please give us a call if your order is urgent to verify the delivery time or see if a faster delivery is possible (additional costs may apply for larger orders).

The following delivery charges may apply per order:
  • £12.00 + VAT – Mainland UK
  • £30.00 + VAT – UK non-mainland

Reviews

There are no reviews yet.

Be the first to review “TPWX ATEX Pallet Truck Scales (Zones 1, 21) – Trade Approved”

Your email address will not be published. Required fields are marked *

Key Accessories

Similar products

Frequently Asked Questions

Please see below for answers to frequently asked questions.

A calibration certificate proves the accuracy of your weighing equipment. It is very likely that if accuracy matters in your workplace, certification will be required by your industry regulators. They are straightforward to get hold of though. Just ask our team.

If you are trading or transacting anything by weight, you will probably need to demonstrate your weighing equipment is verified for trade use. This gives your customers confidence in your business and will make sure buying and selling run smoothly. We can help get you with relevant approvals for your equipment.

The answer will vary depending on how your equipment is used. As a minimum, we typically recommend once a year but our team can provide advice based on your individual circumstances.

The International Organization of Legal Metrology (OIML) has established standards for the classification of calibration test weights. Varying from E0 & E1, which are the most accurate to M2 which are commonly used for calibrating platform scales, floor scales and other industrial weighing instruments.

As a rough guide we have listed desired accuracy against class below.

+/- 0.1% – UNclassed Proof Load Test Weights
+/- 0.05% – M3 (Check/calibrate coarse scales)
+/- 0.005% – M1 (Check/calibrate standard scales)
+/- 0.0015% – F2 (Check/calibrate portable balances)
+/- 0.0005% – F1 (Check/calibrate precision balances)
+/- 0.00015% – E2 (Check/calibrate analytical balances)

The choice of weight class depends on the intended use and the level of accuracy required for a particular application. If you’re unsure, talk to our team who can advise you on the right class for your equipment.

If you’re sending a scale back to us for recalibration, it is ideal to use the original packaging. If this is not available choose a sturdy well-padded box to avoid shocks. Where possible, protect the load sensor by removing the weighing pan and any under-pan support and pack these separately in the box. You may be able to use the equipment’s locking pins or screws too.

Do ensure all the paperwork, including your contact details, is included to ensure we can return it once calibration is complete.
