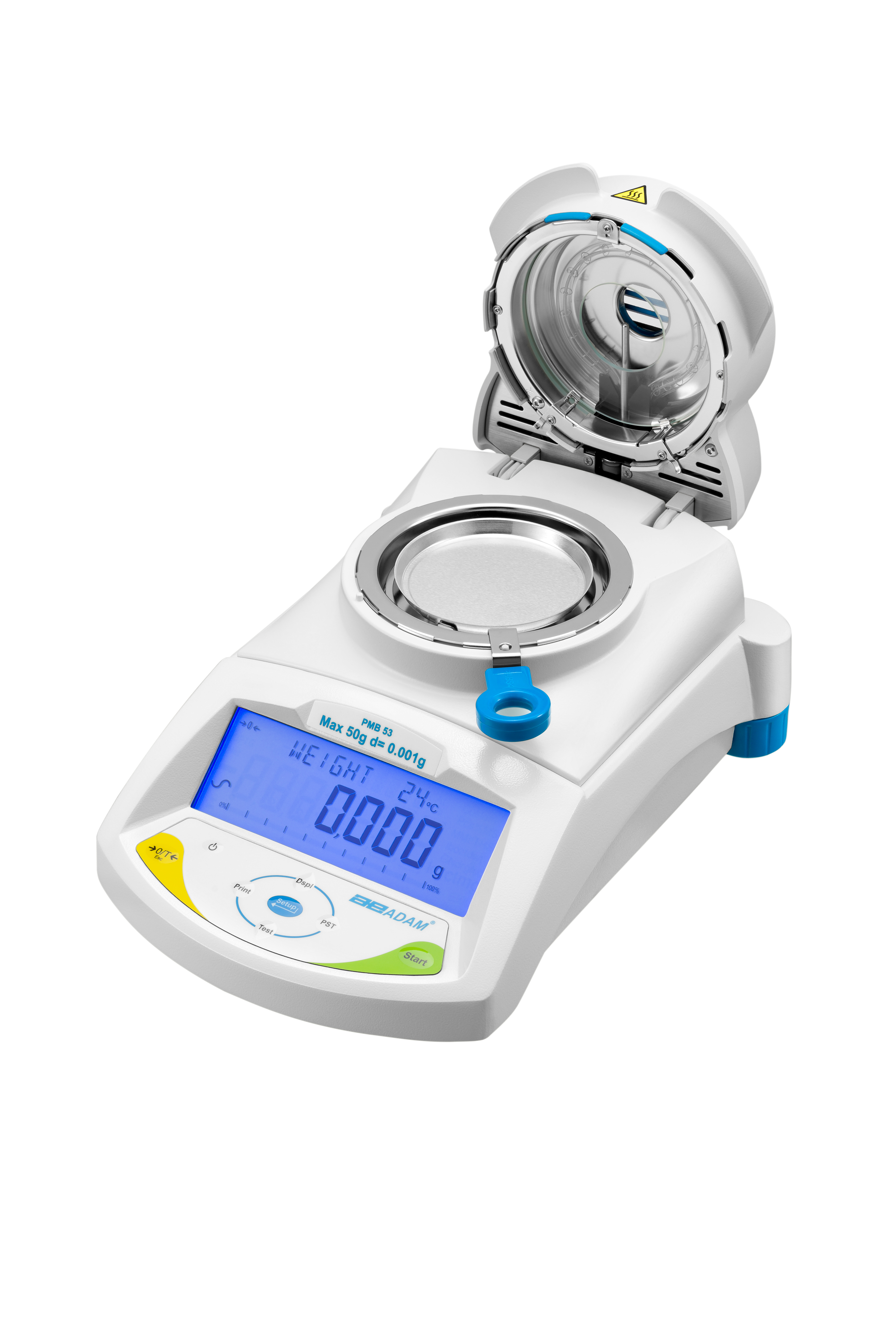

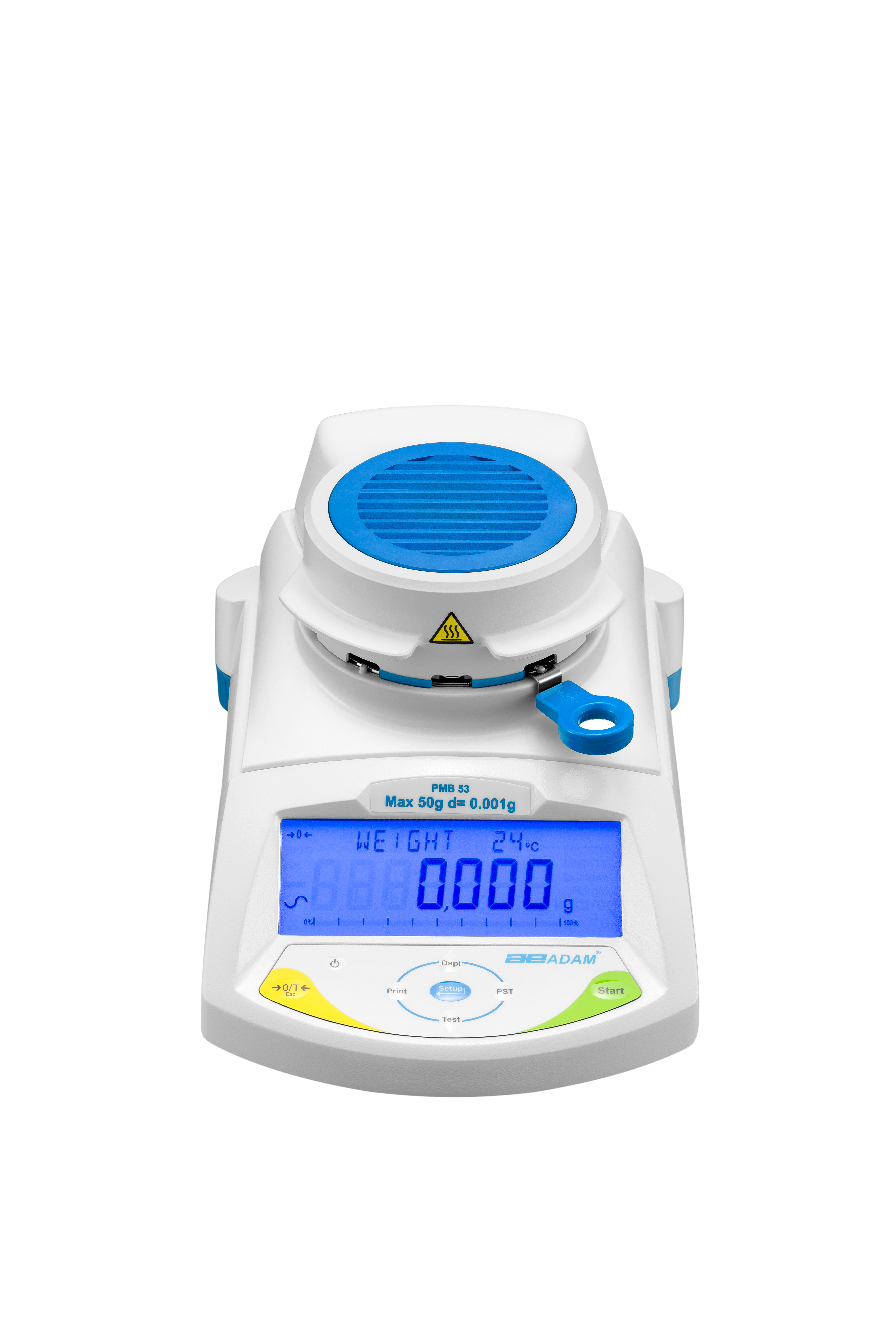

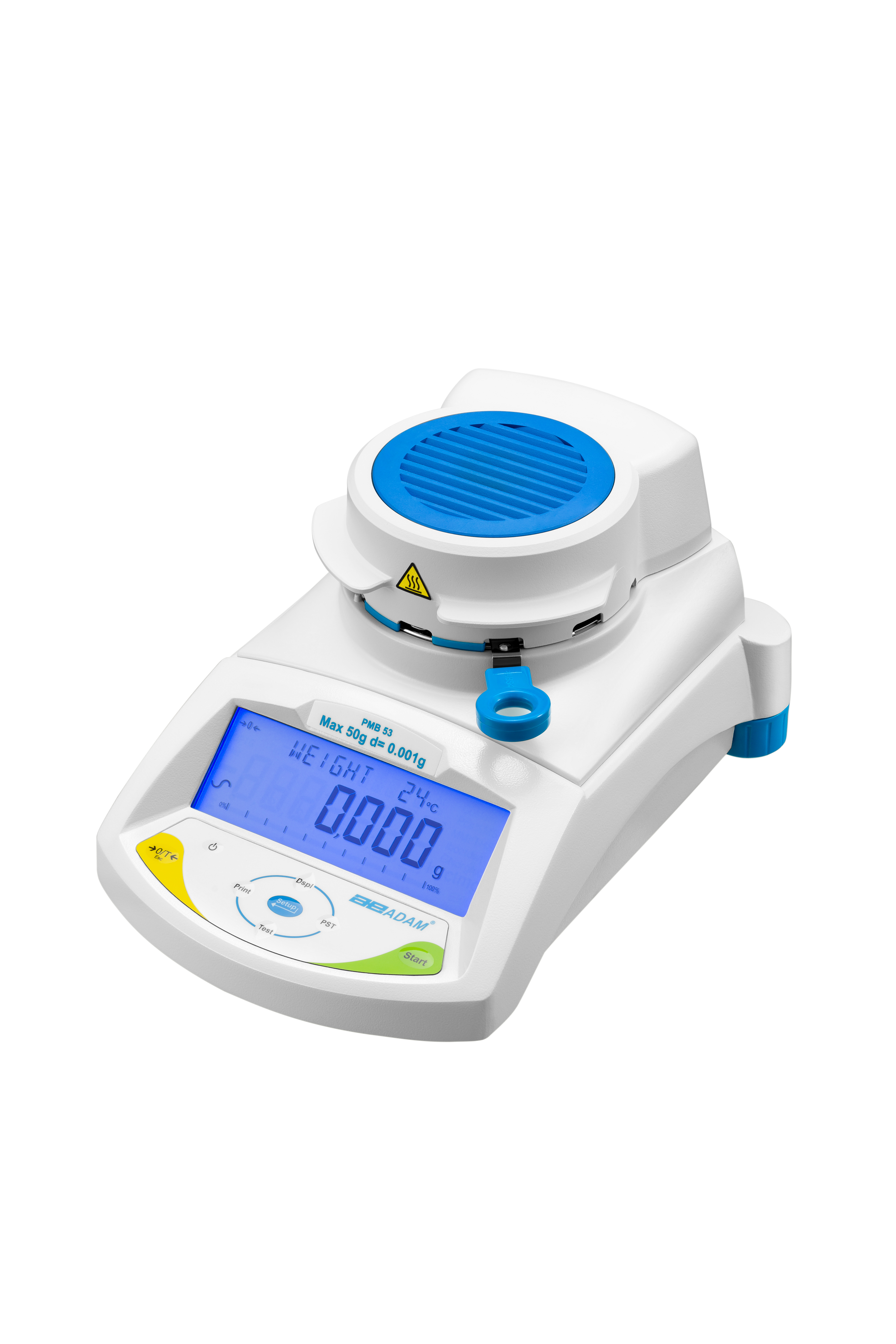

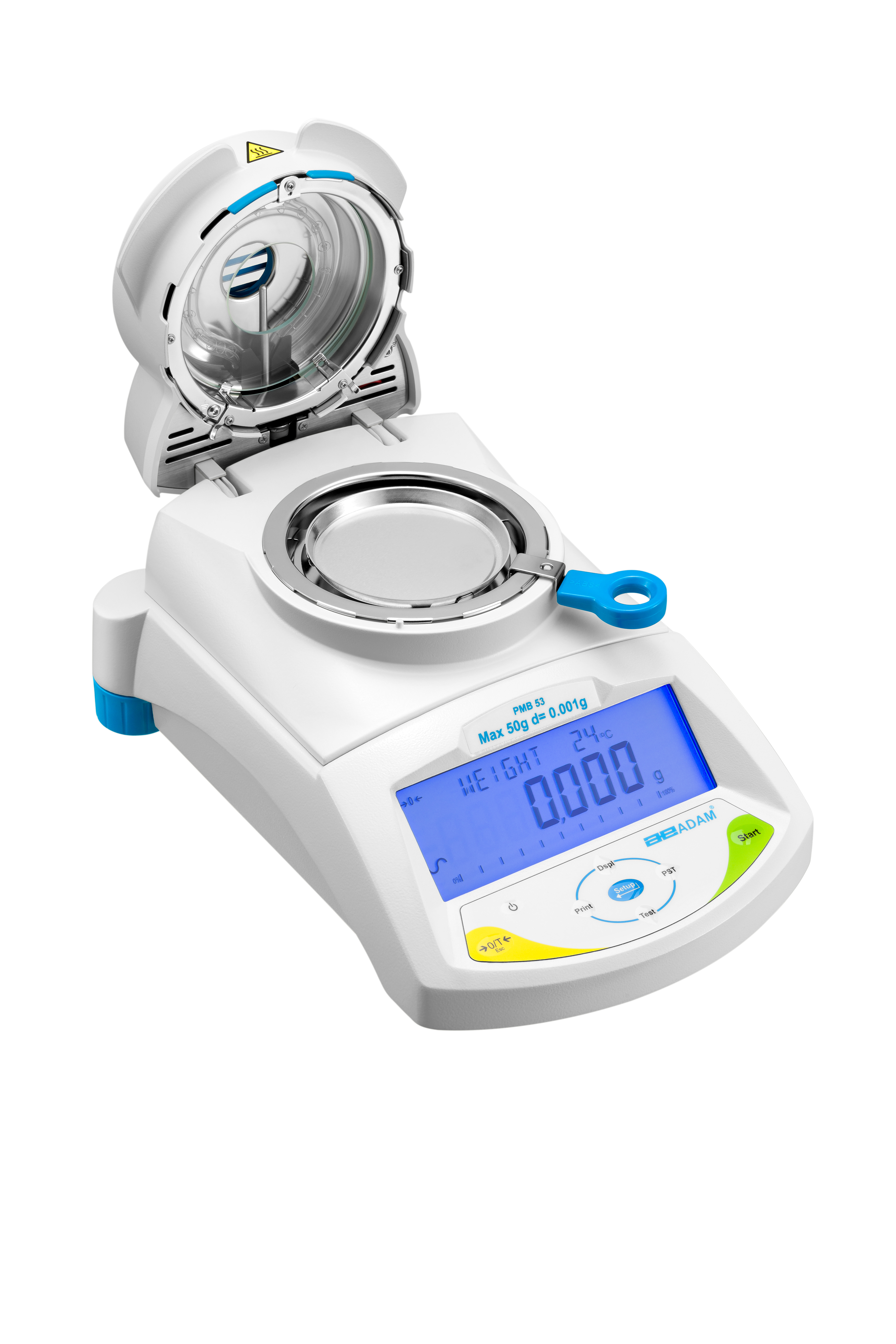

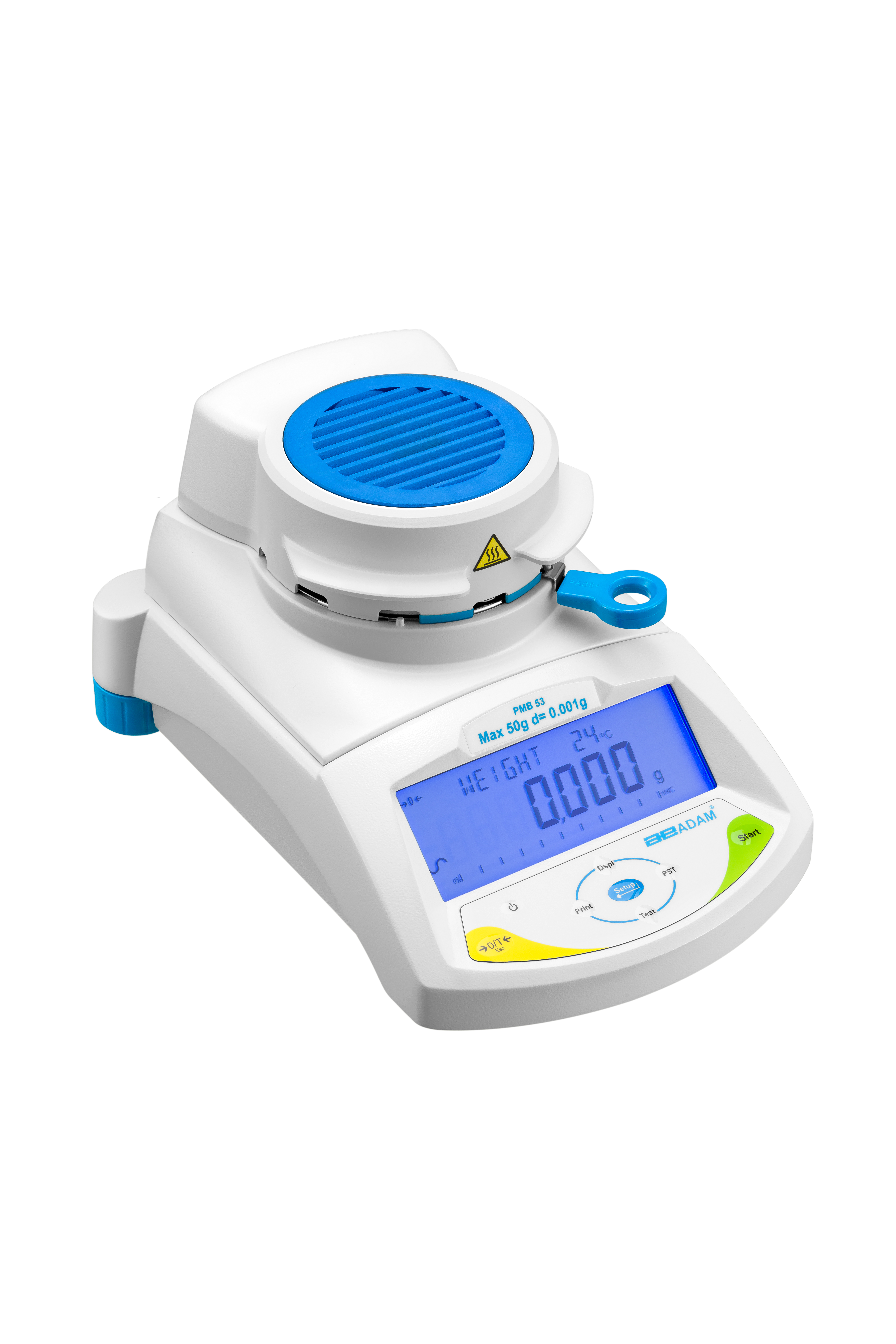

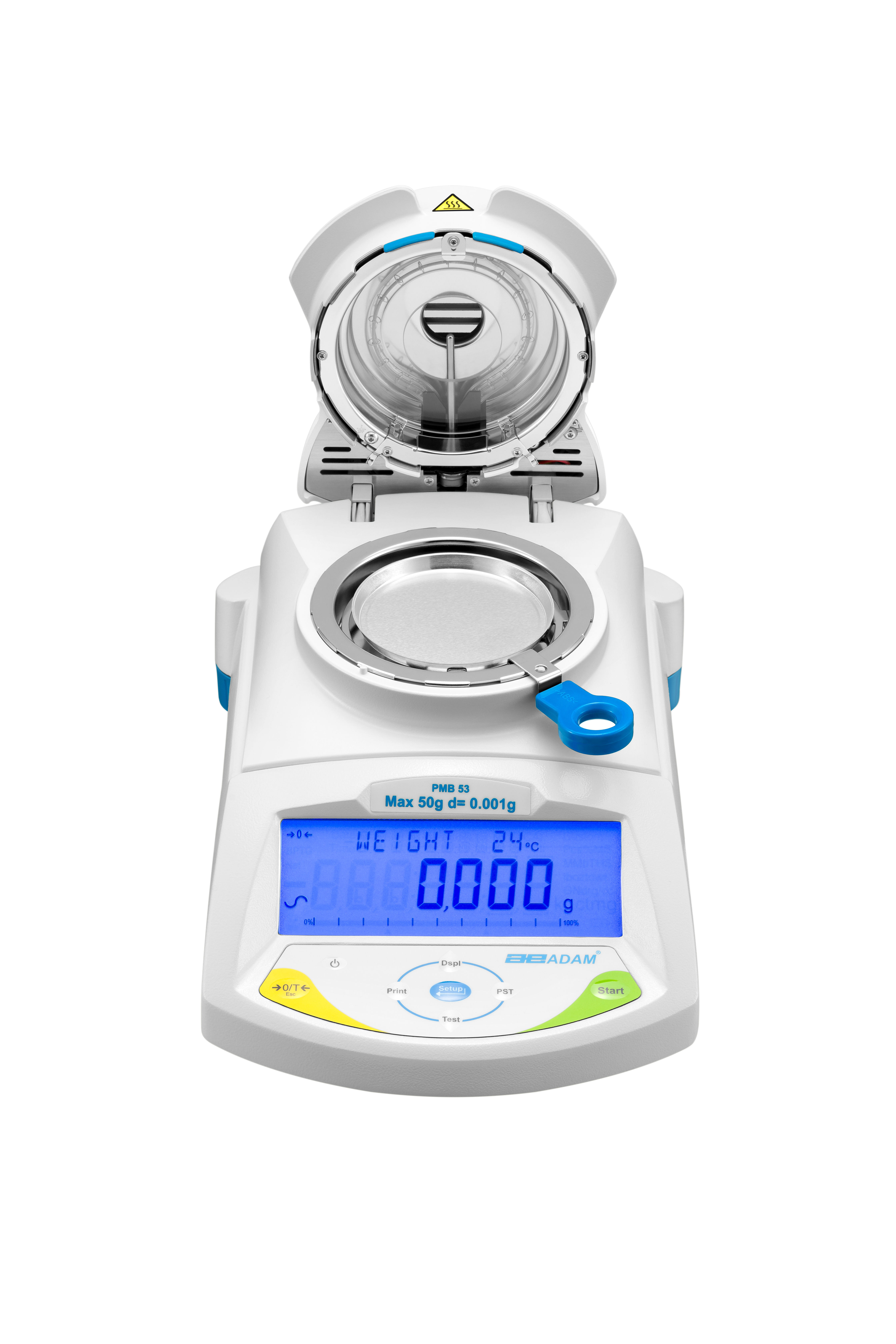

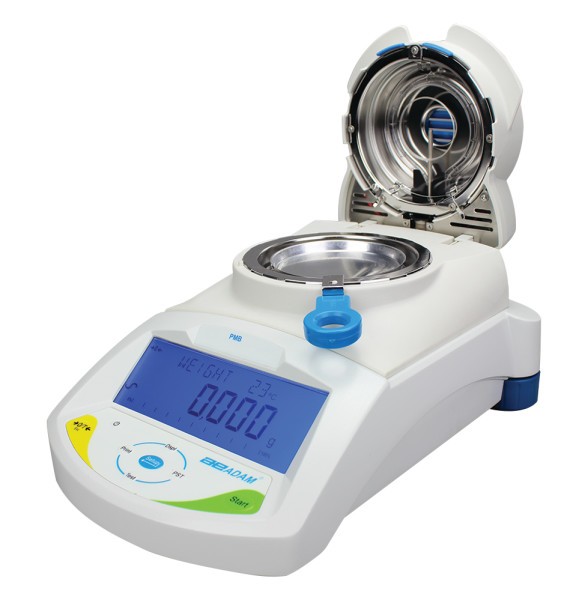

Adam PMB Moisture Analyser

Our Price: £930.00 – £1,101.00 + VAT (£1,116.00 - £1,321.20 inc VAT)

Easy to use, high accuracy moisture analyser with four preset drying modes and internal memory for storing recipes and results. Covered by Adam’s 5 year warranty.

Add Calibration Certificate

Description

What is the Adam PMB Moisture Analyser?

Adam PMB Moisture Analysers provide excellent value with high-level features. No additional software is required to run tests and take readings. PMB offers the freedom to collect data in the lab or in the field. The included halogen bulb heats samples evenly and consistently with 1°C selectable increments.

With simple operation and rapid response time, PMB moisture analysers offer the top value in their class. The automatic test-setting function enables easy recall for frequent testing of the same items without additional user programming. USB and RS-232 interfaces provide computer and printer connections to store test programs and results. No additional software is needed to take readings, giving users total freedom to collect data on a production floor or in the field. A single 400-watt halogen bulb heats samples in 1 °C selectable increments. Three heating options give users the flexibility to customise test methods and temperatures for different materials.

Features and Benefits

Vivid, backlit LCD easily visible in any lighting conditions
Programmable backlight can be set to “always on,” “always off” or “light only when weighing”
Capacity tracker built into display for easily monitoring possible overloads
Scratch-resistant aluminum housing protects internal components
Colour-coded keys facilitate quick recognition of the most frequently used buttons
Pan lifter allows easy placement and removal of samples
RS-232 interface provides speedy connection to computers and printers
USB host for memory card and USB I/O interface
USB interface included for data communication
Temperature range 50°C to 160°C in one-degree increments
Mains power cord
Three settings for heating sample include ramp-up, stepped temperatures and single temperature
Four preset drying modes allow test routines for several products
Audible overload alarm warns when capacity is exceeded
Testing can be set to start automatically when lid closes
Calibration for temperature and weight
Multilingual display allows use in many different countries
Quick and easy configuration using the keypad
Zero-tracking feature ensures display returns to zero reading
Internal memory stores 49 different recipes and up to 99 test results, while additional test results and settings can be stored on a flash drive
Security slot for optional lock and cable to help prevent theft

Heating Technology: Halogen Lamp

Drying Temperature: 50°C – 160°C

Applications: Weighing, Moisture Determination

Interface: RS-232, USB

Weighing Units: g, %M, %S, ATRO %M, ATRO %S

Calibration: External

Power Supply: Mains Power Cord

Download

We endeavour to deliver your goods to you as fast as we can. A large percentage of our orders are delivered in 3 - 5 working days (all mainland UK postcodes except IV, AB and KW) but some goods can take longer if they are delivered direct from the manufacturer or if the item is made to order. Please note, IV, AB and KW postcodes and non-mainland UK including Northern Ireland can take longer. Please give us a call if your order is urgent to verify the delivery time or see if a faster delivery is possible (additional costs may apply for larger orders).

The following delivery charges may apply per order:

£15.00 + VAT – Mainland UK
£30.00 + VAT – UK non-mainland incl. N. Ireland (5 – 7 working days)
£40.00 + VAT – Ireland (7 – 10 working days)

Reviews

There are no reviews yet.

Be the first to review “Adam PMB Moisture Analyser”

Frequently Asked Questions

Please see below for answers to frequently asked questions.

Are readability and accuracy the same thing?

No, although they are both useful measures of weighing equipment performance. Readability refers to the smallest increment of weight that scales or balances will display. A readability of 0.5g, for example, means the scale would display an item of 10.503g’s weight as 10.5g and an item of 10.805g as 11.0g.

Accuracy is a measure of the possible difference between the displayed weight and an item’s real weight. It is often displayed as a percentage. An accuracy of +/- 1% means the scale could measure 100g as anywhere between 99g and 101g.

Do I need a calibration certificate?

A calibration certificate proves the accuracy of your weighing equipment. It is very likely that if accuracy matters in your workplace, certification will be required by your industry regulators. They are straightforward to get hold of though. Just ask our team.

Do I need a "Verified For Trade Use" scale?

If you are trading or transacting anything by weight, you will probably need to demonstrate your weighing equipment is verified for trade use. This gives your customers confidence in your business and will make sure buying and selling run smoothly. We can help get you with relevant approvals for your equipment.

How often should I have my scales calibrated?

The answer will vary depending on how your equipment is used. As a minimum, we typically recommend once a year but our team can provide advice based on your individual circumstances.

Which class of test weight should I use?

The International Organization of Legal Metrology (OIML) has established standards for the classification of calibration test weights. Varying from E0 & E1, which are the most accurate to M2 which are commonly used for calibrating platform scales, floor scales and other industrial weighing instruments.

As a rough guide we have listed desired accuracy against class below.

+/- 0.1% – UNclassed Proof Load Test Weights
+/- 0.05% – M3 (Check/calibrate coarse scales)
+/- 0.005% – M1 (Check/calibrate standard scales)
+/- 0.0015% – F2 (Check/calibrate portable balances)
+/- 0.0005% – F1 (Check/calibrate precision balances)
+/- 0.00015% – E2 (Check/calibrate analytical balances)

The choice of weight class depends on the intended use and the level of accuracy required for a particular application. If you’re unsure, talk to our team who can advise you on the right class for your equipment.

How to pack a scale for shipping

If you’re sending a scale back to us for recalibration, it is ideal to use the original packaging. If this is not available choose a sturdy well-padded box to avoid shocks. Where possible, protect the load sensor by removing the weighing pan and any under-pan support and pack these separately in the box. You may be able to use the equipment’s locking pins or screws too.

Do ensure all the paperwork, including your contact details, is included to ensure we can return it once calibration is complete.
