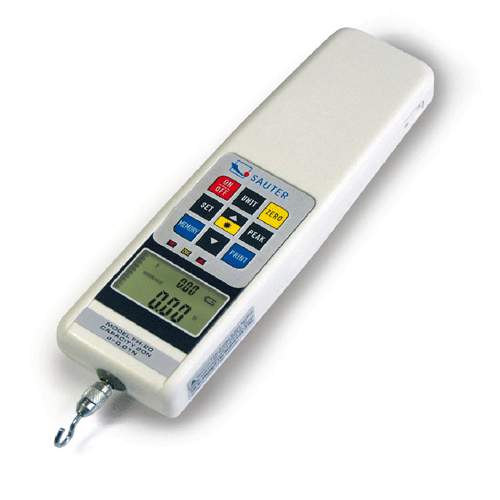

SAUTER FH 2 Force Gauge 2 N x 0.001 N

Our Price: £407.00 + VAT (£488.40 inc VAT)

Do you require a calibration certificate – traceable to National Standards?

Price: £55

Description

Universal digital force gauge for tensile and compressive force measurements with integrated load cell

Features:

· Large display with backlight
· 1 Can be mounted on all SAUTER test
stands up to 5 kN
· Data interface RS-232 as standard
· 2 Standard attachments as shown,
extension rod: 90 mm
· 3 Delivered in a robust carrying case
· Selectable measuring units: N, kgf, lbf
· Peak-Hold function to capture the peak value
or Track function for continuous display of
measurement
· Measuring with tolerance range (limit-setting
function): Upper and lower limit adjustable,
in pull and push direction. The process is
supported by an audible and visual signal
· Auto-Power-Off
· Internal memory for up to 10 measurement
values
· Mini Statistics Kit: calculates the average
result from up to 10 stored measured values,
as well as min., max., n

Technical data:

· Transfer rate to PC: approx. 25 measured
values per second
· Measuring precision: 0,5 % of [Max]
· Overload protection: 150 % of [Max]
· Overall dimensions W×D×H 230×66×36 mm
· Thread: M6
· Rechargeable battery pack integrated, as
standard, operating time up to 12 h without
backlight, charging time approx. 4 h
· Net weight approx. 0,65 kg

Accessories:

· Data transfer software with graphic display
of the measurement process, Force-time,
SAUTER AFH FAST
Force-displacement only in combination with
SAUTER LD, SAUTER AFH LD
Force-displacement only in combination with
SAUTER LB, SAUTER AFH FD
· RS-232/PC-Connection cable to connect
models from the SAUTER FH range to a PC,
SAUTER FH-A01
· 2 Standard attachments as standard, set
can be reordered, SAUTER AC 43
· Further accessories see www.sauter.eu and
page 40 et se

Mpn: FH2

Capacity: 2 N

Resolution: 0.001 N



Downloads

PDF-Download

We endeavour to deliver your goods to you as fast as we can. A large percentage of our orders are delivered in 3 - 5 working days (all mainland UK postcodes except IV, AB and KW) but some goods can take longer if they are delivered direct from the manufacturer or if the item is made to order. Please note, IV, AB and KW postcodes and non-mainland UK including Northern Ireland can take longer. Please give us a call if your order is urgent to verify the delivery time or see if a faster delivery is possible (additional costs may apply for larger orders).

The following delivery charges may apply per order:
  • £15.00 + VAT – Mainland UK
  • £30.00 + VAT – UK non-mainland incl. N. Ireland (5 – 7 working days)
  • £40.00 + VAT – Ireland (7 – 10 working days)

Reviews

There are no reviews yet.

Be the first to review “SAUTER FH 2 Force Gauge 2 N x 0.001 N”

Your email address will not be published. Required fields are marked *

Frequently Asked Questions

Please see below for answers to frequently asked questions.

A calibration certificate proves the accuracy of your weighing equipment. It is very likely that if accuracy matters in your workplace, certification will be required by your industry regulators. They are straightforward to get hold of though. Just ask our team.

If you are trading or transacting anything by weight, you will probably need to demonstrate your weighing equipment is verified for trade use. This gives your customers confidence in your business and will make sure buying and selling run smoothly. We can help get you with relevant approvals for your equipment.

The answer will vary depending on how your equipment is used. As a minimum, we typically recommend once a year but our team can provide advice based on your individual circumstances.

The International Organization of Legal Metrology (OIML) has established standards for the classification of calibration test weights. Varying from E0 & E1, which are the most accurate to M2 which are commonly used for calibrating platform scales, floor scales and other industrial weighing instruments.

As a rough guide we have listed desired accuracy against class below.

+/- 0.1% – UNclassed Proof Load Test Weights
+/- 0.05% – M3 (Check/calibrate coarse scales)
+/- 0.005% – M1 (Check/calibrate standard scales)
+/- 0.0015% – F2 (Check/calibrate portable balances)
+/- 0.0005% – F1 (Check/calibrate precision balances)
+/- 0.00015% – E2 (Check/calibrate analytical balances)

The choice of weight class depends on the intended use and the level of accuracy required for a particular application. If you’re unsure, talk to our team who can advise you on the right class for your equipment.

If you’re sending a scale back to us for recalibration, it is ideal to use the original packaging. If this is not available choose a sturdy well-padded box to avoid shocks. Where possible, protect the load sensor by removing the weighing pan and any under-pan support and pack these separately in the box. You may be able to use the equipment’s locking pins or screws too.

Do ensure all the paperwork, including your contact details, is included to ensure we can return it once calibration is complete.
