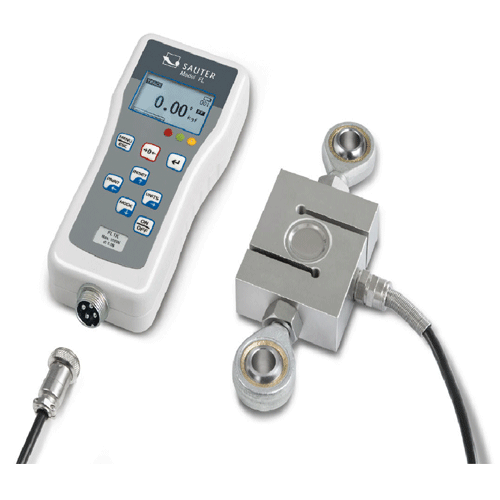

SAUTER FL-M FL 2K Force Gauge 2500 N x 1 N

Description

Digital Premium force gauge with graphics display for tensile and compressive force measurements, prepared for external load cells

Features:

· 1 Premium force-measuring for connenction
of external load cells (load cell, tension loops
and pressure plates not included with delivery)
· Adjustable nominal loads: 5 N, 10 N, 25 N,
50 N, 100 N, 250 N, 500 N, 1 kN, 2,5 kN,
5 kN, 10 kN, 20 kN, 50 kN
· Suitable for strain gauge sensors: up to
500 N characteristic value 1 mV/V, from
1 kN characteristic value 2 mV/V
· Maximum resolution 2500 d
· Peak-Hold function to capture the peak value
or Track function for continuous display of
measurement
· Metal housing for durable use in harsh
environmental conditions
· Capacity display: A bar lights up to show
how much of the measuring range is still
available
· Measuring with tolerance range (limit-setting
function): Upper and lower limit adjustable,
in pull and push direction. The process is
supported by an visual signal
· Internal data memory for up to 500 values
· Continuous analogue output: Linear voltage
signal in dependence to the load (-2 to +2V)
· USB data interface, as standard
· Selectable measuring units: N, kN, kgf, lbf, ozf
· 2 Delivered in a robust carrying case

Technical data:

· Transfer rate to PC: approx. 25 measured
values per second
· Measuring precision: 0,2 % of [Max]
· Overload protection: 120 % of [Max]
· Overall dimensions W×D×H 175×75×30 mm
· Rechargeable battery pack integrated, as
standard, operating time up to 10 h without
backlight, charging time approx. 8 h
· Net weight approx. 1,8 kg

Accessories:

· Plug-In for data transfer of measuring data
from the measuring instrument and transfer
to a PC, e.g. in Microsoft Excel®,
SAUTER AFI-2.0
· Data transfer software with graphic display
of the measurement process, Force-time,
SAUTER AFH FAST
Force-displacement only in combination with
SAUTER LD, SAUTER AFH LD
Force-displacement only in combination with
SAUTER LB, SAUTER AFH FD
· USB cable, included in delivery, can be ordered separately, USB/PC connection cable
(USB-A/USB mini), SAUTER FL-A01
· RS-232 adapter cable, SAUTER FL-A04
· Option FL-C01: Solder connector for
FL TM to load cell and adjusting the
device, SAUTER FL-C01

· Plug-In for data transfer of measuring data
from the measuring instrument and transfer
to a PC, e.g. in Microsoft Excel®,
SAUTER AFI-2.0
· Data transfer software with graphic display
of the measurement process, Force-time,
SAUTER AFH FAST
Force-displacement only in combination with
SAUTER LD, SAUTER AFH LD
Force-displacement only in combination with
SAUTER LB, SAUTER AFH FD
· USB cable, included in delivery, can be ordered separately, USB/PC connection cable
(USB-A/USB mini), SAUTER FL-A01
· RS-232 adapter cable, SAUTER FL-A04
· Option FL-C01: Solder connector for
FL TM to load cell and adjusting the
device, SAUTER FL-C01

See datasheet for full product options and accessories.

Mpn: FL2K

Capacity: 2500 N

Resolution: 1 N
