Dini-Argeo-Atex-Platform

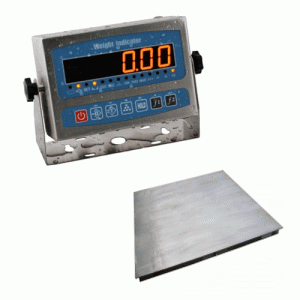

Dini Argeo ETI ATEX Zone 1/21 + 2/22 Platform Scale + DFWATEX2GD Indicator

Our Price: £3,334.00 – £7,084.00 + VAT (£4,000.80 - £4,000.80 inc VAT)

Stainless Steel Platform Scales For ATEX 1,/21 Zones

Do you require a calibration certificate – traceable to National Standards?

Price: £75

Description

Stainless Steel Platform Scales For ATEX 1/21 Zones

Fully stainless steel platform scales, for specific use in ATEX hazardous areas. Provided with the ATEX declaration of conformity and the load cell certificate of conformity.

Available in various base sizes, capacities and resolutions. Please see below:-

Weight Indicator Features:

Weight indicator for areas classified as hazardous with protection methods according to:
ATEX II 2(2)G Ex ib [ib Gb] IIC T4 Gb for gases
ATEX II 2(2)D Ex tb [ib Db] IIIC T197°C IP65 Db for dust
Ideal for creating weighing systems, batching, and automation systems. EC-Type-Examination certificate according to Annex III (ATEX directive). CE-M approvable (OIML R-76 / EN 45501)

Waterproof 17-key numerical and functional keyboard
LCD display with 6 25 mm high contrast digits, clearly visible even in poor lighting conditions and with low temperatures, and with 6 LEDs for showing the active functions
IP68 Satin finish stainless steel case
Dimensions 264 mm x 174 mm x 115 mm
Suitable for use on the table, or wall
Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/e in CE-M approved version for legal for trade use
Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points
Up to 8 signal linearization points with DINITOOLS (3 from keypad)
A/D 24-bit sigma-delta conversion, up to 200 conv./sec. autoselect
Digital calibration and set-up from keyboard; Instrument management & configuration from PC with DINITOOLS
Power supply through external module: with optional battery pack; or with optional power adapter connectable to mains at 230 Vac or at 24 Vdc
Connection with up to 4 load cells having 350 Ohm input resistance

Scale Functions:
– Zeroing
– Automatic Tare
– Presettable Tare
– ID1 and ID2 10-digit Codes
– Print and data transmission commands
– selectable function command
– on/off switching

STF-1 Stainless Steel Bracket included

Platform Features:

Low profile STAINLESS STEEL electronic platforms with removable loading plate. Fitted with IP68 STAINLESS STEEL load cells. Suitable for creating scales and electronic weighing systems for all types of industrial and commercial applications. Standard version is with approved load cell

Fitted with 4 STAINLESS STEEL shear-beam OIML approved load cells each with 350 Ohm input resistance with protection against dust and immersion according to IP68 standards
Stainless steel bearing tubular structure, with removable stainless steel plate (except for the ELCI models which have a non removable plate) and IP67 junction box housing
Adjustable, stainless steel shock-proof jointed feet and level
Up to 15 Vdc power supply
Hermetic junction box and wiring cables with sheathing according to IP67 standards, and shielded 5m long 6-pin cable with connectors for connection to the indicator

Included:
EXACBPW – Armoured power cable x 5m
CCATEX-1 – ATEX loadcells x 4
JB4QAI – ATEX junction box
EXCB6 – ATEX certified cable platform-indicator x 5 m
DCATEX2GD – Declaration of ATEX conformity of whole. Ex II 2GD IIC T4 T197°C X

Applications: High Resolution Weighing x 10, Net/Gross or lb/kg Conversion, Accumulation, Formula Weighing, +/- Checkweighing, Counting (Max. resolution of 1.500.000 divisions), In/Out Truck Weighing, Hold,

Weighing Units: kg

Power Supply: To be combined always with the PW200XRDxxx series’ power adapter or DFWBP76ATEX battery. See Product Options

Downloads

PDF-Download

We endeavour to deliver your goods to you as fast as we can. A large percentage of our orders are delivered in 3 - 5 working days (all mainland UK postcodes except IV, AB and KW) but some goods can take longer if they are delivered direct from the manufacturer or if the item is made to order. Please note, IV, AB and KW postcodes and non-mainland UK including Northern Ireland can take longer. Please give us a call if your order is urgent to verify the delivery time or see if a faster delivery is possible (additional costs may apply for larger orders).

The following delivery charges may apply per order:
  • £15.00 + VAT – Mainland UK
  • £30.00 + VAT – UK non-mainland incl. N. Ireland (5 – 7 working days)
  • £40.00 + VAT – Ireland (7 – 10 working days)

Reviews

There are no reviews yet.

Be the first to review “Dini Argeo ETI ATEX Zone 1/21 + 2/22 Platform Scale + DFWATEX2GD Indicator”

Your email address will not be published. Required fields are marked *

Key Accessories

Similar products

Frequently Asked Questions

Please see below for answers to frequently asked questions.

A calibration certificate proves the accuracy of your weighing equipment. It is very likely that if accuracy matters in your workplace, certification will be required by your industry regulators. They are straightforward to get hold of though. Just ask our team.

If you are trading or transacting anything by weight, you will probably need to demonstrate your weighing equipment is verified for trade use. This gives your customers confidence in your business and will make sure buying and selling run smoothly. We can help get you with relevant approvals for your equipment.

The answer will vary depending on how your equipment is used. As a minimum, we typically recommend once a year but our team can provide advice based on your individual circumstances.

The International Organization of Legal Metrology (OIML) has established standards for the classification of calibration test weights. Varying from E0 & E1, which are the most accurate to M2 which are commonly used for calibrating platform scales, floor scales and other industrial weighing instruments.

As a rough guide we have listed desired accuracy against class below.

+/- 0.1% – UNclassed Proof Load Test Weights
+/- 0.05% – M3 (Check/calibrate coarse scales)
+/- 0.005% – M1 (Check/calibrate standard scales)
+/- 0.0015% – F2 (Check/calibrate portable balances)
+/- 0.0005% – F1 (Check/calibrate precision balances)
+/- 0.00015% – E2 (Check/calibrate analytical balances)

The choice of weight class depends on the intended use and the level of accuracy required for a particular application. If you’re unsure, talk to our team who can advise you on the right class for your equipment.

If you’re sending a scale back to us for recalibration, it is ideal to use the original packaging. If this is not available choose a sturdy well-padded box to avoid shocks. Where possible, protect the load sensor by removing the weighing pan and any under-pan support and pack these separately in the box. You may be able to use the equipment’s locking pins or screws too.

Do ensure all the paperwork, including your contact details, is included to ensure we can return it once calibration is complete.
