Marsden OCS-L Crane/Hanging scale

Description

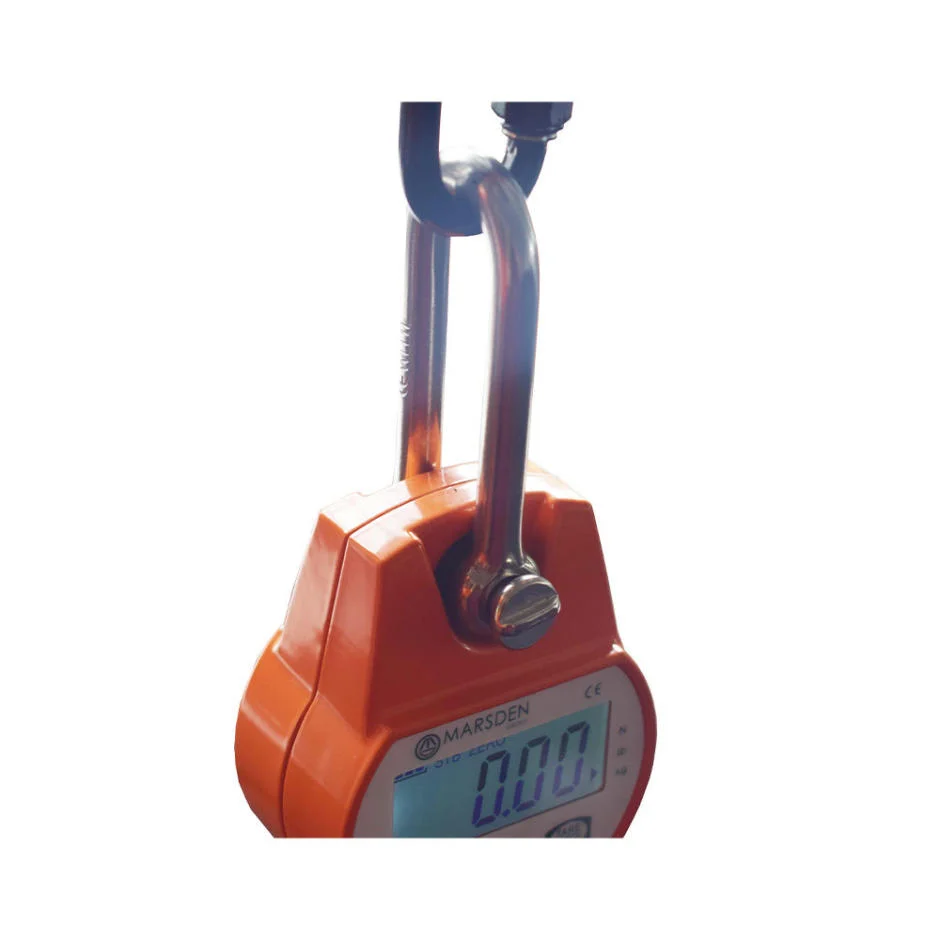

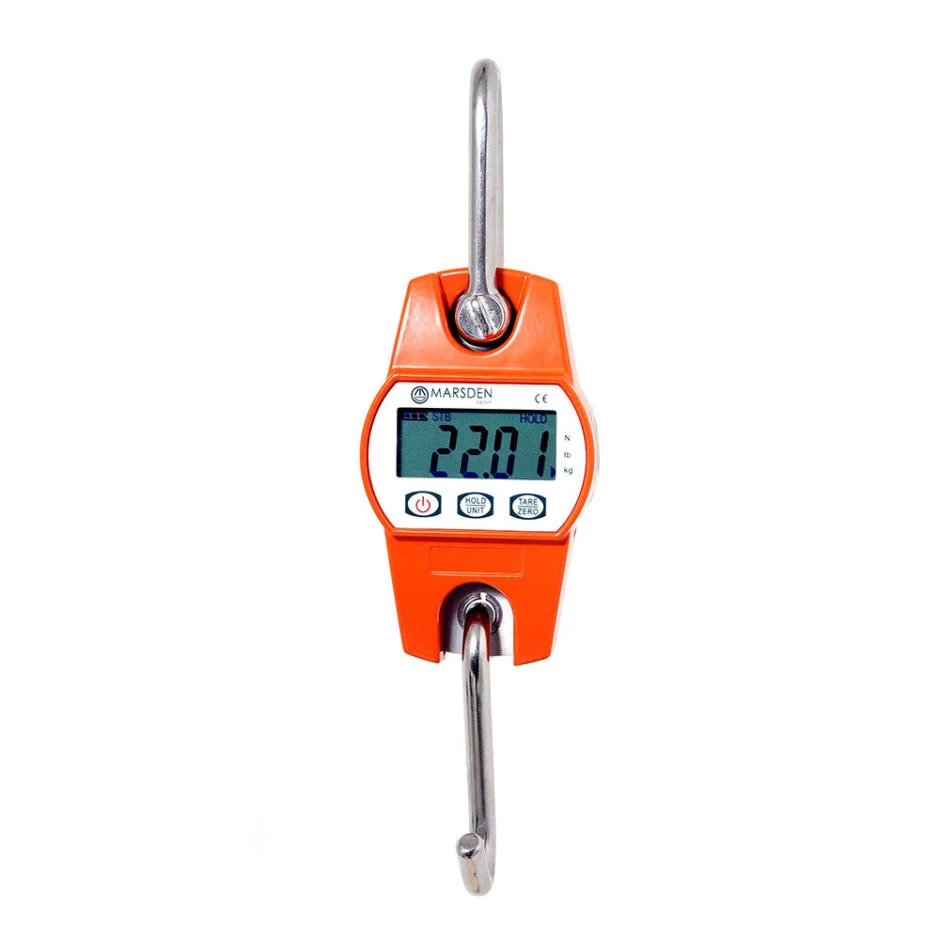

Marsden OCS-L Lightweight Digital Crane Scale

Product Overview

The Marsden OCS-L is an ultra-lightweight, highly versatile digital crane scale engineered for precision suspension weighing in industrial, food processing, market, and warehousing environments. Weighing as little as 0.6 kg, this portable hanging scale combines a robust aluminium die-cast casing with a secure stainless steel hook and shackle. Available in multiple capacity options ranging from 30kg up to 300kg, it delivers exceptional accuracy and reliable performance for overhead and hanging loads, making it an essential tool for material handling and inventory control.

What is a crane scale used for in industrial environments?

A crane scale (or hanging scale) is a specialized weighing instrument used to measure heavy or awkward loads suspended from cranes, hoists, or lifting hooks. In industrial and commercial settings, devices like the Marsden OCS-L allow operators to weigh raw ingredients, bulk goods, or manufactured products mid-lift, streamlining loading, shipping, inventory tracking, and batching processes without requiring floor-mounted platform scales.

How accurate are lightweight digital crane scales?

Despite their compact and portable size, high-quality digital crane scales offer exceptional precision. The Marsden OCS-L provides fine graduations depending on its capacity—ranging from 0.01 kg readability on the 30 kg model up to 0.1 kg on the 300 kg model. This high resolution ensures accurate portioning, batch verification, and trade applications where exact weights are legally or operationally required.

What are the benefits of an aluminum die-cast housing on a hanging scale?

An aluminium die-cast housing provides the optimal balance between high structural strength and lightweight portability. For crane scales, this heavy-duty yet lightweight construction ensures the device can withstand the rigors of busy factory floors, warehouses, and outdoor markets while remaining easy for operators to handle, hang, and transport throughout the working day.

Key Features & Technical Specifications

• Multiple Capacity Options: Available in 4 distinct capacities to suit various tasks:

  • 30 kg x 0.01 kg

  • 50 kg x 0.02 kg

  • 150 kg x 0.05 kg

  • 300 kg x 0.1 kg

• Ultra-Lightweight Design: Weighs approximately 0.6 kg to 0.7 kg, making it exceptionally easy to lift, transport, and rig.

• Robust Construction: Features a durable aluminium die-cast housing paired with a corrosion-resistant stainless steel hook and shackle.

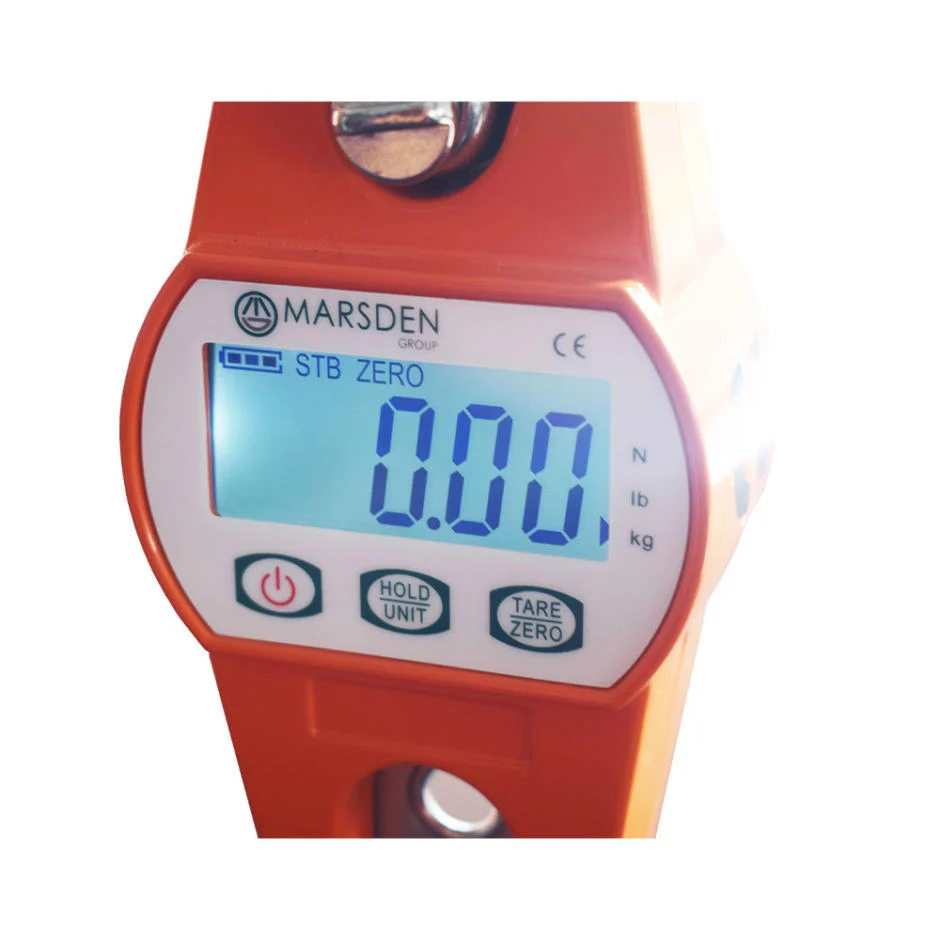

• Clear Backlit Display: Equipped with a bright 20mm LCD screen with backlight for optimal visibility in low-light indoor or outdoor conditions.

• Extended Battery Life: Powered by 3 x AA batteries, offering up to 120 hours of continuous operation.

• Essential User Functions: Includes Zero, Tare, Hold functions, and an integrated Overload Alarm for enhanced workplace safety.

• Compact Dimensions: 55 mm (W) × 80 mm (D) × 290 mm (H).

Primary Applications

• Food Production & Processing: Widely used for weighing raw fish, meat, poultry, and bulk vegetables during preparation and batching.

• Markets & Retail Stalls: Ideal for mobile traders, fishmongers, and agricultural markets requiring portable hanging scales.

• Warehousing & Logistics: Efficient overhead weighing of packages, incoming shipments, and hanging inventory items.

• Light Industrial Manufacturing: Suspension weighing for raw materials and manufactured parts in restricted-space facilities.

Frequently Asked Questions (FAQs)

What capacities are available for the Marsden OCS-L crane scale?

The Marsden OCS-L is available in four versatile capacity configurations: 30kg, 50kg, 150kg, and 300kg, allowing users to choose the ideal model for light retail, food processing, or general industrial weighing.

How long does the battery last on the Marsden OCS-L?

The scale is powered by standard replaceable AA batteries and delivers up to 120 hours of continuous use, ensuring long-term reliability and minimal downtime on active shifts.

Does the OCS-L crane scale feature an overload warning?

Yes, safety is prioritized with an integrated overload alarm system that alerts operators if a load exceeds the safe capacity limit of the scale.

Can the Marsden OCS-L be used in food production facilities?

Yes, the scale is frequently deployed in food processing plants (such as meat, poultry, and fish processing) due to its stainless steel hook/shackle, ease of sanitization, and precise graduations suited for ingredient batching.

How do you tare or hold a weight reading on this hanging scale?

Using the included control functions, operators can easily press the Tare button to zero out container weights (such as slings or baskets) or use the Hold function to freeze the weight reading on the screen after the load has been removed or stabilized.
