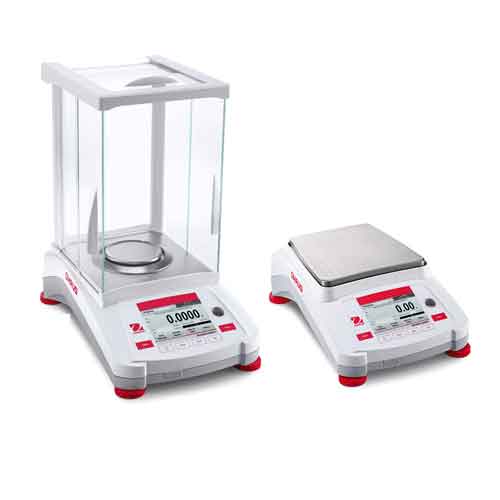

Ohaus Adventurer Analytical Balance

Our Price: £1,899.00 – £2,282.00 + VAT (£2,278.80 - £2,278.80 inc VAT)

Ready For Your Lab, Whenever That May Be

Add Calibration Certificate

Description

Intuitive Balances Designed for Routine Weighing

Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the OHAUS Adventurer incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, GLP/GMP compliance capabilities, two USB ports, and much more, Adventurer is the most complete balance in its class.

Unique Features Include:

• Adventurer balances feature a color touchscreen, icon-based user interface, and an ergonomic
design – making them easy to configure and use.
• Features such as specialized weighing modes, multiple connectivity options, and AutoCal™
provide versatility and flexibility for a variety of applications.
• Durable construction, large weighing surfaces, a space-saving draftshield design, and full
housing in-use cover allow for use in lab, education and industrial environments.

Applications: Weighing, Parts Counting, Percent Weighing, Check Weighing, Animal/Dynamic Weighing, Totalization/Statistics, Formulation, Density Determination, Display Hold

Display: 4.3″ (109 mm) Full-color VGA graphic touchscreen with user-controlled brightness

Operation: AC adapter (included)

Communication: RS232, USB Host, USB Device (included). GLP/GMP data output with real-time clock.

Construction: Metal base, ABS top housing, stainless steel pan, glass draftshield with two piece top mounted side doors and sliding top door, illuminated up-front level indicator, integral weigh below hook, security bracket, calibration lock, full housing in-use cover

Design Features: Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, up to 9 operating languages

Standard Features Include: Stability, Accuracy, and Fast Operation Ensure Optimal Weighing Results – this trio of characteristics ensures the most important aspects of routine laboratory weighing are covered: accurate results, achieved quickly, that you can count on

Color Touchscreen & Connectivity Options Power a Modern Weighing Experience – the wide viewing angle color touchscreen offers quick access to all of Adventurer’s applications. Dual USB ports and the ability to store GLP/GMP information assist in the monitoring and reporting of data

Space-saving Draftshield Improves User Experience and Accessibility – the two piece, top-mounted draftshield doors open wide on both sides, providing ample room for sample placement, and also reduce the footprint of the draftshield in the rear of the balance when open.

Equipped with the Connectivity and Functional Features

Dual USB Ports required in Laboratories

A front USB host port is easily accessible and makes it simple to load data from the balance on to a flash drive without having to reach around to the back or move the balance

A second USB device is located at the rear of the balance that can be used to connect the balance to a PC

The connectivity options help meet traceability requirements in traditional installations

Label Printing Function

Easy to link with Zebra printer and have one built-in label printing template

Balance Profiles

The cloning feature allows you to save user and application settings to a USB flash drive which can be easily used to configure additional Adventurer balances

Below Minimum Sample Weight Indication

When using the minimum weight feature, the display clearly indicates that your current sample weight is below your defined minimum limit. Simply increase your sample weight to assure that your results are up to your standard

Compliance: Metrology: OIML R76, EN 45501 (Class I, nmax 320000; Class II, nmax 62000)
Product Safety: EN 61010-1, IEC 61010-1
Electromagnetic Compatibility: IEC 61326-1, EN 61326-1
(emissions Class B, immunity basic requirements)
Compliance Marks: CE; CSA; UKCA

Applications: Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Formulation, Density Determination, Totalization, Display Hold

Interface: RS-232, USB Host, USB Device

Weighing Units: g, mg, mesghal, momme, N, oz, lb, ct, dwt, gr, oz t, Baht, Tael (HK), Tael (Singapore), Tael (Taiwan), Tical (MM), Tola (India), 1 custom unit

Power Supply: AC Adapter Input: 100-240 VAC 0.3A 50-60 Hz / AC Adapter Output: 12 VDC 0.84A

Approval: EC-type Approval / Class II

Downloads

We endeavour to deliver your goods to you as fast as we can. A large percentage of our orders are delivered in 3 - 5 working days (all mainland UK postcodes except IV, AB and KW) but some goods can take longer if they are delivered direct from the manufacturer or if the item is made to order. Please note, IV, AB and KW postcodes and non-mainland UK including Northern Ireland can take longer. Please give us a call if your order is urgent to verify the delivery time or see if a faster delivery is possible (additional costs may apply for larger orders).

The following delivery charges may apply per order:

£15.00 + VAT – Mainland UK
£30.00 + VAT – UK non-mainland incl. N. Ireland (5 – 7 working days)
£40.00 + VAT – Ireland (7 – 10 working days)

Reviews

There are no reviews yet.

Be the first to review “Ohaus Adventurer Analytical Balance”

Key Accessories

12120799 - Ohaus Paper for SF40A - 2 Rolls

Our Price: £11.00 + VAT

30529322 - Ohaus Ink Ribbon for SF40A Printer

Our Price: £8.00 + VAT

30095929 - Ohaus ION-100A Ionizer

Our Price: £982.00 + VAT

80253384 - Ohaus Density Determination Kit For PX/AX/EX/PR (supplied without a sinker)

Our Price: £461.00 + VAT

30093334 - Ohaus Dust Cover For EX/AX Models

Our Price: £28.00 + VAT

83021085 - Ohaus Impact Printer SF-110B USB Interface Cable

Our Price: £16.00 + VAT

Frequently Asked Questions

Please see below for answers to frequently asked questions.

Are readability and accuracy the same thing?

No, although they are both useful measures of weighing equipment performance. Readability refers to the smallest increment of weight that scales or balances will display. A readability of 0.5g, for example, means the scale would display an item of 10.503g’s weight as 10.5g and an item of 10.805g as 11.0g.

Accuracy is a measure of the possible difference between the displayed weight and an item’s real weight. It is often displayed as a percentage. An accuracy of +/- 1% means the scale could measure 100g as anywhere between 99g and 101g.

Do I need a calibration certificate?

A calibration certificate proves the accuracy of your weighing equipment. It is very likely that if accuracy matters in your workplace, certification will be required by your industry regulators. They are straightforward to get hold of though. Just ask our team.

Do I need a "Verified For Trade Use" scale?

If you are trading or transacting anything by weight, you will probably need to demonstrate your weighing equipment is verified for trade use. This gives your customers confidence in your business and will make sure buying and selling run smoothly. We can help get you with relevant approvals for your equipment.

How often should I have my scales calibrated?

The answer will vary depending on how your equipment is used. As a minimum, we typically recommend once a year but our team can provide advice based on your individual circumstances.

Which class of test weight should I use?

The International Organization of Legal Metrology (OIML) has established standards for the classification of calibration test weights. Varying from E0 & E1, which are the most accurate to M2 which are commonly used for calibrating platform scales, floor scales and other industrial weighing instruments.

As a rough guide we have listed desired accuracy against class below.

+/- 0.1% – UNclassed Proof Load Test Weights
+/- 0.05% – M3 (Check/calibrate coarse scales)
+/- 0.005% – M1 (Check/calibrate standard scales)
+/- 0.0015% – F2 (Check/calibrate portable balances)
+/- 0.0005% – F1 (Check/calibrate precision balances)
+/- 0.00015% – E2 (Check/calibrate analytical balances)

The choice of weight class depends on the intended use and the level of accuracy required for a particular application. If you’re unsure, talk to our team who can advise you on the right class for your equipment.

How to pack a scale for shipping

If you’re sending a scale back to us for recalibration, it is ideal to use the original packaging. If this is not available choose a sturdy well-padded box to avoid shocks. Where possible, protect the load sensor by removing the weighing pan and any under-pan support and pack these separately in the box. You may be able to use the equipment’s locking pins or screws too.

Do ensure all the paperwork, including your contact details, is included to ensure we can return it once calibration is complete.
