Durable Compact Scales for the Toughest Industrial Weighing Environments
The multipurpose Ranger 4000 is the right tool for industrial weighing applications in which value is important but quality, durability, and functionality cannot be compromised. Portable with die-cast metal housing and a rechargeable battery, this scale is equipped with seven application modes that can provide results for many industrial weighing and measurement needs.
Sturdy metal housing and slip-resistant rubber feet provide the protection, stability and long product life needed for tough industrial weighing. The most user-friendly scale on the market features SmarText™ for easy operation and setup to ensure efficiency in the workplace. With the largest display in its class, checkweighing LED indicators and backlit LCD display, the Ranger 4000 can function in almost any industrial environment.
• Weighing—Determine the weight of items in the selected unit of measure.
• Percent Weighing—Measure the weight of a sample displayed as a percentage of a pre-established reference weight.
• Parts Counting—Count samples of uniform weight.
• Check Weighing/Percent/Counting—Compare the weight/percent/count of a sample against target limits. Choose from Checkweight,
Checkpercent or Checkcount.
• Accumulation—Totalization of weight, count or percent. Calculates total accumulated weight, count or percent of separate items.
• Dynamic Weighing—Weigh an unstable load. Scale takes an average of weights over a time period.
• Display Hold—Manually or automatically holds the last stable weight on the balance display. Activated by setting time interval of Dynamic Weighing to zero.
Metal Housing Ensures Protection
With die-cast sealed metal housing and slip-resistant rubber feet, Ranger 4000 is built to maximize product life and withstand heavy duty use and
ensure accurate operation in industrial environments.

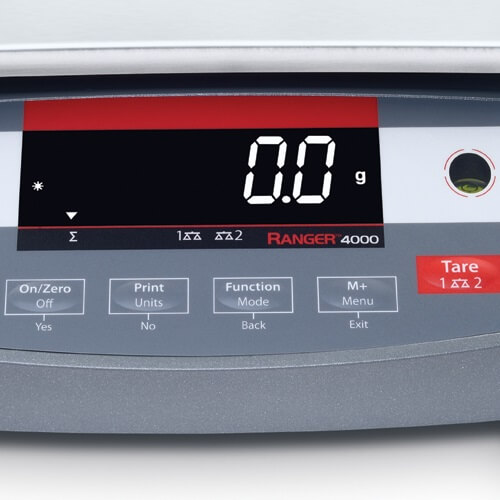

White LED Display Illuminates Results
Ranger 4000’s bright white 1.5″ LED display is 57% larger than displays on other scales in its class. Coupled with checkweighing LEDs and
audible indicators, Ranger 4000 is built to stand up to the challenges often faced in industrial weighing.
Intuitive Software Supports Simple Navigation
Powered by SmarText™ software, Ranger 4000’s simple navigation works in tandem with the scale’s dedicated keys to create a user experiencethat requires minimal effort.
Ranger 4000 produces accurate results within one second. The rapid stabilization virtually eliminates your wait time and allows you to move
at a pace determined by you and not your weighing equipment. Work efficiently and with confidence to ensure accurate results. Maximize your
throughput without sacrificing accuracy with the Ranger 4000.
Construction: Stainless steel platform, Die cast aluminum housing
Weighing Units: kg, g, lb, oz, lb:oz
Application Modes: Weighing, Percent Weighing, Parts Counting, Checkweighing, Checkcounting, Checkpercent, Accumulation, Dynamic Weighing/Display Hold
Display: 1.5-inch / 40mm high White LED display, 6-digit, 7-segment Checkweighing Indicators 3 LED (yellow, green, red) with configurable operation and alert beeper
Keyboard: 5 mechanical keys
Zero Range: 4 % or 20 % of full scale capacity
Tare Range: Full capacity by subtraction
Stabilization Time: 1 second
Auto-Zero Tracking: Off, 0.5, 1 or 3 divisions
Safe Overload Capacity: 150 % of capacity
Power: 100 – 240 VAC / 50 – 60 Hz internal universal power supply, internal rechargeable lead acid battery
Battery Life: 100 hours continuous use with 12 hour recharge time
Calibration: External, with user-selectable calibration weight
Interface: Built-in RS232, optional 2nd platform, 2nd RS232, USB, Ethernet
Operating Temperature Range: -10 °C to 40 °C
Platform Size: (W × L) 300 mm × 225 mm
Scale Dimensions: (W × L × H) 315 × 327 × 122 mm
Shipping Dimensions: (W × L × H) 397 × 447 × 195 mm
Net Weight: 5.9 kg
Shipping Weight: 7.2 kg
