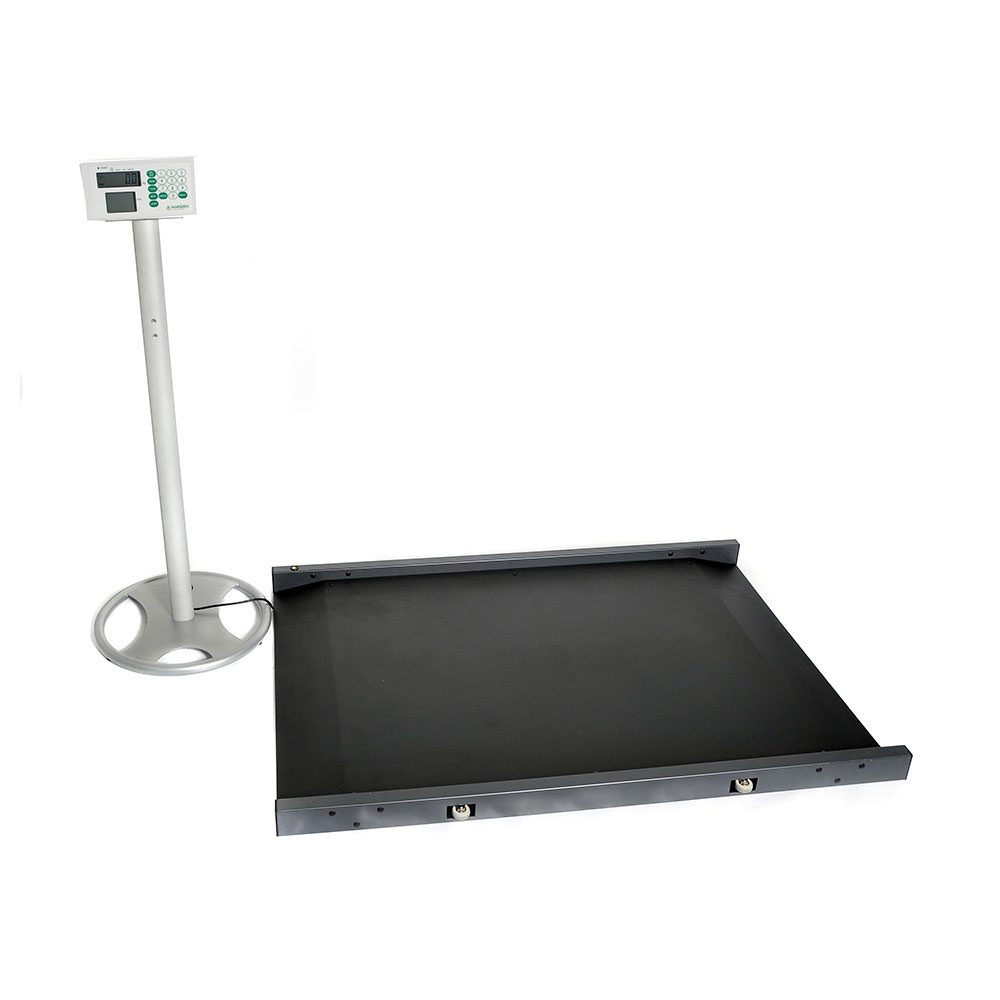

Marsden M-651 Wheelchair Scale with Column (Class III Approved)

Description

The Marsden M-651 is a heavy-duty wheelchair scale featuring a column-mounted indicator for easy reading. 300kg capacity, BMI function, and dual-ramp access.

The Marsden M-651 is a high-capacity, semi-permanent weighing solution designed for the rigorous demands of hospitals, rehabilitation centre’s, and care homes. Built upon the ultra-stable platform of the M-650, the M-651 features a column-mounted indicator, elevating the display to waist height. This ergonomic addition ensures that weight and BMI readings are always at eye level for the clinician, eliminating the need to bend down or hold a remote display during patient consultations.

With its 300kg capacity and robust, one-piece construction, the M-651 is the professional choice for facilities seeking a dedicated, easy-to-read wheelchair weighing station.

Ergonomic Design for Clinical Efficiency

The standout feature of the M-651 is its integrated column, which transforms the platform into a more permanent and accessible weighing fixture:

• Eye-Level Readings: The column-mounted DP-3810 indicator is positioned for maximum visibility, featuring a large, clear display that is easy to read in any lighting.

• One-Piece Stability: The 1150mm x 800mm platform is built for heavy-duty use. Its rigid, one-piece design provides a solid foundation that can accommodate almost any manual or powered wheelchair.

• Effortless Access: Gentle incline ramps on both sides of the platform allow for smooth “roll-on, roll-off” operation, ensuring a stress-free experience for the patient and reduced physical effort for the staff.

Precision Diagnostic Features

The M-651 is a fully Class III and MDD Approved medical device, providing the accuracy required for legal medical monitoring and treatment dosing.

• Dual-Range Accuracy: Delivers 100g graduations across its entire 300kg capacity, ensuring precise weight tracking for all patient types.

• Full Numeric Keypad: The indicator includes a full keypad for rapid height entry, allowing the scale to calculate and display Body Mass Index (BMI) in seconds.

• Hold & Tare Functions: Use the Preset Tare to instantly deduct the weight of the wheelchair. The Hold function locks the weight on the screen, allowing the clinician to focus on the patient before recording the data.

Mobile Versatility & Modern Connectivity

While designed as a semi-permanent fixture, the M-651 remains surprisingly easy to reposition when needed:

• Integrated Wheels and Handle: By simply lifting the platform with the side handle, the scale can be tilted onto its integrated wheels and rolled to a new location or storage area.

• Unrivalled Battery Life: Powered by 6 x AA batteries or an internal rechargeable pack, the scale provides up to 180 hours of use (approximately 9,000 weigh-ins). A mains adaptor is also included.

• Digital Data Ready: Includes a standard data port for printers, with optional Bluetooth, Wi-Fi, or USB connectivity available to transmit readings directly to patient EMR systems.

Marsden M-651 Technical Specifications

The Marsden M-651 is the “Indicator Column” variant of the M-650 series, designed to provide better ergonomics for clinicians by placing the display closer to eye level while maintaining 300kg bariatric capacity.
