Name: VWDIS/I Stainless steel Scales with 1 built-in ramp
SKU: 10898
Availability: outofstock
Rating: 5 (1 reviews)

VWDIS/I Stainless steel Scales with 1 built-in ramp

Our Price: £2,929.00 – £5,467.00 + VAT (£3,514.80 - £6,560.40 inc VAT)

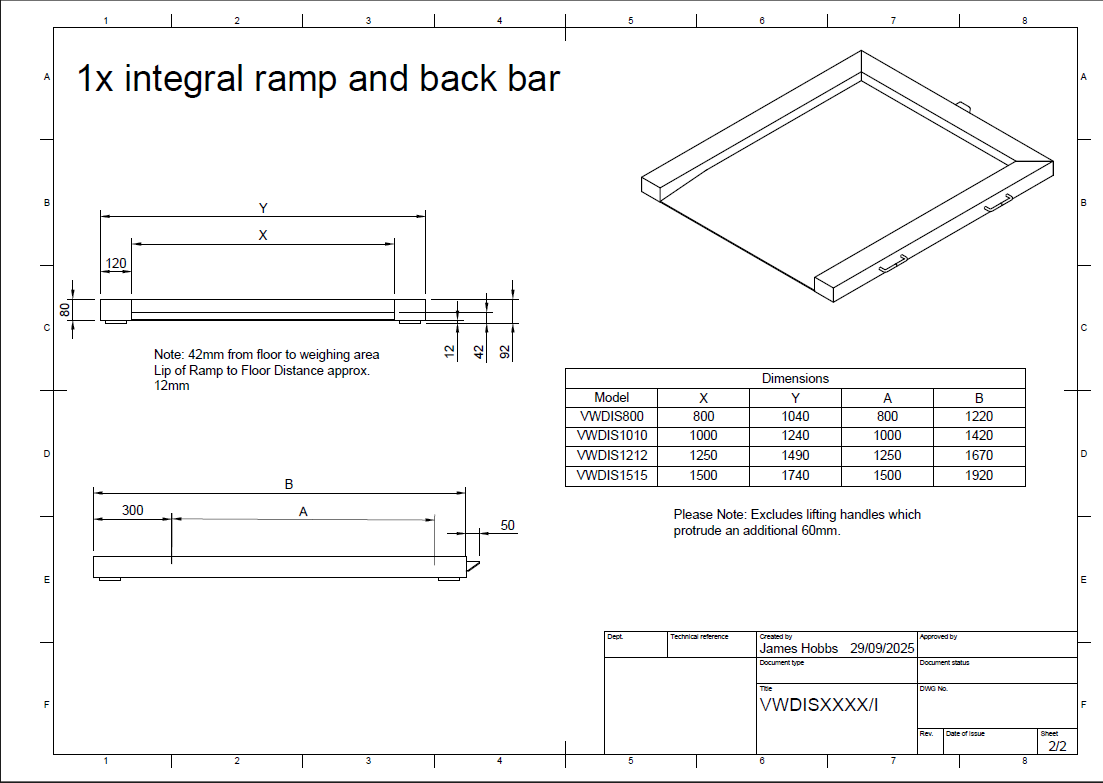

304 stainless steel with smooth plate. 1 x built-in 300mm long ramp designed for high pressure washdown IP69 stainless steel loadcells as standard, 5m braided signal cable, cable shield & covered j-box. Safety back bar. 2 handles as standard 12mm from lip of ramp to floor.

Add Calibration Certificate

Description

Designed for High Pressure Washdown in High Hygiene Production Areas

At only 40mm high, the UK made VWDIS drive-in platforms are extra low profile, ensuring easy access and minimum floor space requirements. Professional manufacturing and high quality components ensure reliable and accurate weighing performance.

Low Profile design with shallow gradient ramps and easy access for loading devices.

The platforms include one ramp for entry and exit along with a rear safety stop bar. The 300mm long ramp reduces the loading gradient for unstable or low clearance trolleys and a smooth top plate ensures small wheels or casters can be easily accommodated.

UK manufacturing and high quality components for accuracy, reliability and performance backed by a 2 year warranty.

A durbar top plate option is also available to help reduce the risk of slipping if required. IP69K rated loadcells, a sealed stainless junction box and a unique flow through design ensure protection from high pressure washdown. To help provide portability during cleaning and maintenance handles are supplied as standard.

Key Features:

2 year manufacturer’s warranty
UK made to the highest quality standards
Fully stainless steel washdown construction
IP69K stainless steel OIML approved loadcells
Low profile – only 40mm to weighing area
Easy access for trolley, pallet trucks, cages etc
Built-in or separate 300mm long ramps
Various standard sizes and capacities
Custom sizes and capacities available

Download

We endeavour to deliver your goods to you as fast as we can. A large percentage of our orders are delivered in 3 - 5 working days (all mainland UK postcodes except IV, AB and KW) but some goods can take longer if they are delivered direct from the manufacturer or if the item is made to order. Please note, IV, AB and KW postcodes and non-mainland UK including Northern Ireland can take longer. Please give us a call if your order is urgent to verify the delivery time or see if a faster delivery is possible (additional costs may apply for larger orders).

The following delivery charges may apply per order:

£12.00 + VAT – Mainland UK
£30.00 + VAT – UK non-mainland incl. N. Ireland (5 – 7 working days)
£40.00 + VAT – Ireland (7 – 10 working days)

Reviews

There are no reviews yet.

Be the first to review “VWDIS/I Stainless steel Scales with 1 built-in ramp”

Key Accessories

FX-i-OP-02 - A&D USB Interface Cable

Our Price: £74.19 + VAT

FXi-OP-11 - A&D FX-i/FZi Large Breeze Break

Our Price: £93.69 + VAT

AX-FX-31i - A&D Plastic Working Covers (pack 5) For FX-i/FZ-i/HR-A/HR-AZ

Our Price: £32.99 + VAT

FXi-OP-10 - A&D FX-i/FZ-i Small Breeze Break

Our Price: £48.39 + VAT

Frequently Asked Questions

Please see below for answers to frequently asked questions.

Are readability and accuracy the same thing?

No, although they are both useful measures of weighing equipment performance. Readability refers to the smallest increment of weight that scales or balances will display. A readability of 0.5g, for example, means the scale would display an item of 10.503g’s weight as 10.5g and an item of 10.805g as 11.0g.

Accuracy is a measure of the possible difference between the displayed weight and an item’s real weight. It is often displayed as a percentage. An accuracy of +/- 1% means the scale could measure 100g as anywhere between 99g and 101g.

Do I need a calibration certificate?

A calibration certificate proves the accuracy of your weighing equipment. It is very likely that if accuracy matters in your workplace, certification will be required by your industry regulators. They are straightforward to get hold of though. Just ask our team.

Do I need a "Verified For Trade Use" scale?

If you are trading or transacting anything by weight, you will probably need to demonstrate your weighing equipment is verified for trade use. This gives your customers confidence in your business and will make sure buying and selling run smoothly. We can help get you with relevant approvals for your equipment.

How often should I have my scales calibrated?

The answer will vary depending on how your equipment is used. As a minimum, we typically recommend once a year but our team can provide advice based on your individual circumstances.

Which class of test weight should I use?

The International Organization of Legal Metrology (OIML) has established standards for the classification of calibration test weights. Varying from E0 & E1, which are the most accurate to M2 which are commonly used for calibrating platform scales, floor scales and other industrial weighing instruments.

As a rough guide we have listed desired accuracy against class below.

+/- 0.1% – UNclassed Proof Load Test Weights
+/- 0.05% – M3 (Check/calibrate coarse scales)
+/- 0.005% – M1 (Check/calibrate standard scales)
+/- 0.0015% – F2 (Check/calibrate portable balances)
+/- 0.0005% – F1 (Check/calibrate precision balances)
+/- 0.00015% – E2 (Check/calibrate analytical balances)

The choice of weight class depends on the intended use and the level of accuracy required for a particular application. If you’re unsure, talk to our team who can advise you on the right class for your equipment.

How to pack a scale for shipping

If you’re sending a scale back to us for recalibration, it is ideal to use the original packaging. If this is not available choose a sturdy well-padded box to avoid shocks. Where possible, protect the load sensor by removing the weighing pan and any under-pan support and pack these separately in the box. You may be able to use the equipment’s locking pins or screws too.

Do ensure all the paperwork, including your contact details, is included to ensure we can return it once calibration is complete.
